Toku Chipping Hammer
Feature
- Light weight and Easy to Operate
- Precision valve allows excellent throttle work.
- Weight selectable among 3 models for various type of operation.
- Ergonomic Handle Option
- Anti-vibration handle is available for workers healthcare. (AA-1.3BAV)
Other Features
- Replaceable bushing to protect wear of cylinder.
- 2 types of bushing are available, round or hex.
- Spring type retainer to reduce running cost.
Specification
| Model | Description |
|---|---|

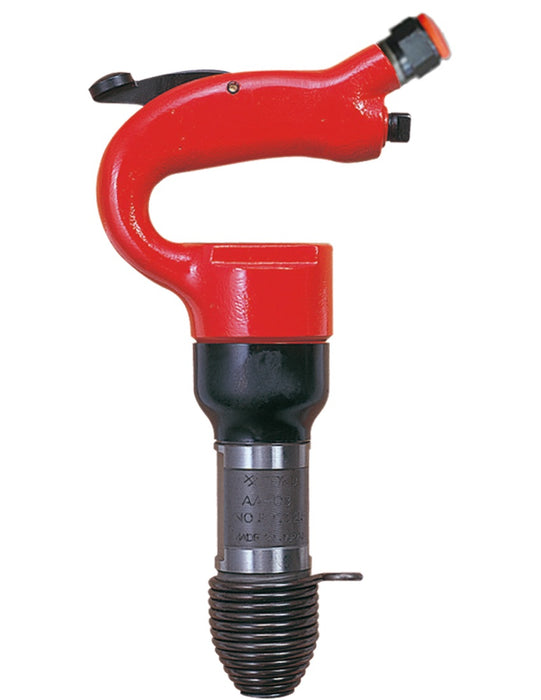

| AA-08 | Toku Chipping Hammer 2.0 KG (3,600 bpm/12.4 cfm) |

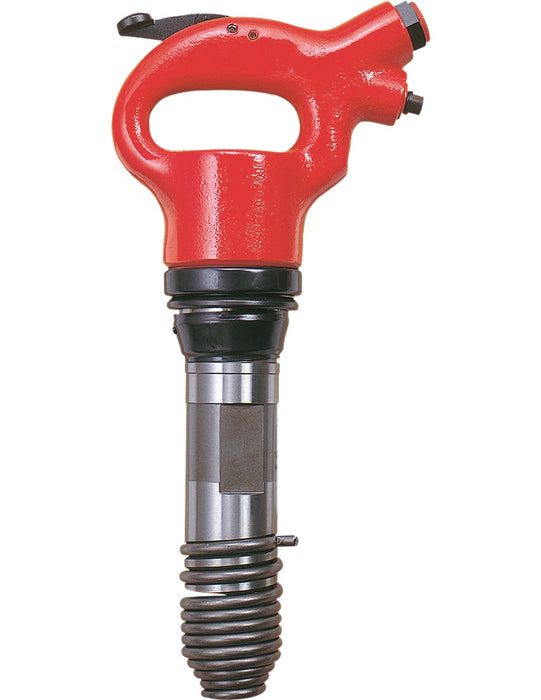

| AA-1.3B | Toku Chipping Hammer 4.5 Kg (2,800 bpm/15.9 cfm |

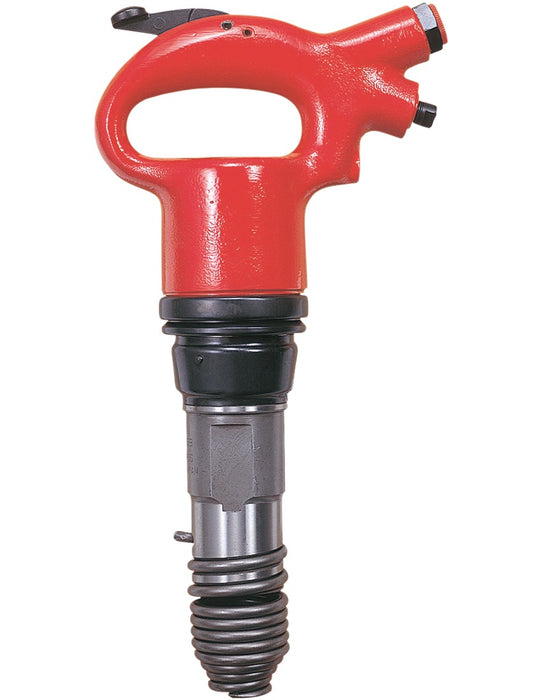

| AA-3B | Toku Chipping Hammer 5.8 Kg (2,400 bpm/15.9 cfm) |
| THA-4SRV | Toku Chipping Hammer 7.0 Kg (1,800 bpm/33.5 cfm) |

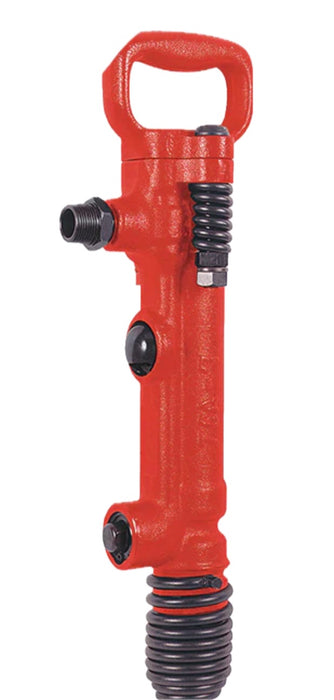

| TCA-7 | Toku Chipping Hammer 7.2 Kg (1,250 bpm/35.3 cfm) |
| MODEL | Piston Diameter |
Piston Stroke |
Blow Per Min. |
Net Weight |
Overall Length |
Air Consumption |
Hose Size |
Shank Size |
Air Inlet |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | b.p.m. | kg | lb | mm | m3/min | cfm | mm | inch | PT | |
| AA-0B | 20 | 50 | 3600 | 2.0 | 4.4 | 254 | 0.35 | 12.4 | 12.7 | R15/12H x53 | 3/8 |
| AA-1.3B | 24 | 58 | 2800 | 4.5 | 9.9 | 320 | 0.45 | 15.9 | 12.7 | R18/15H x60 | 3/8 |
| AA-3B | 28 | 79 | 2400 | 5.8 | 13.9 | 330 | 0.45 | 15.9 | 12.7 | R18/15H x60 | 3/8 |
| TCA-7 | 35 mm | 120 mm | 1250 bpm | 7.2 kg | 16 | 465 mm | 1.0 | 35.3 cfm | 19 mm | R26/80 | 3/4 PT |
Note
- Working pressure: 0.6MPa.
