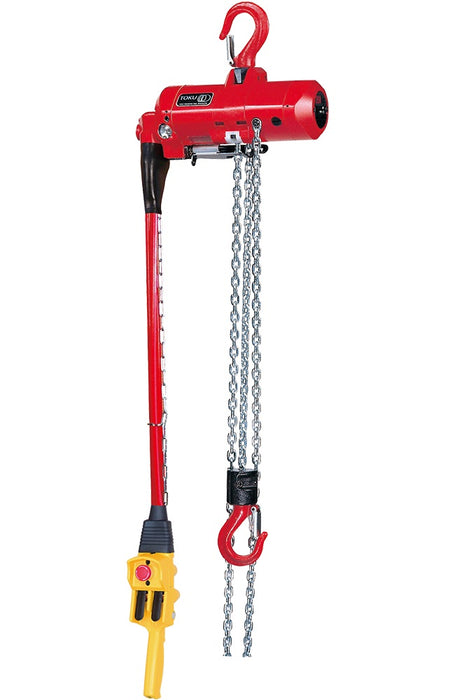

Toku Air Chain Hoist TCR-250 Series
Feature
- Precise variable speed control.
- Classification (ISO): M4
- Compact Design
- Light-weight aluminum housing
- Failsafe automatic internal disc brake.
- Over-traveling limiter.
- Alloy safety swivel hooks with safety catch.
- Emergency stop button as standard for pendant type.
- 250kg Capacity
Specification
| MODEL | Lifting Capacity |
No. of Chain Falls |
Lifting Speed |
Lifting Air Cons. |
Lowering Speed |
Lowering Air Cons. |
Weight w/o Chain |
Min Hook Distance |
Wire Diameter Chain Dimension |
Hose Size |
|---|---|---|---|---|---|---|---|---|---|---|
| kg | m/min | m3/min | m/min | m3/min | kg | mm | mm | mm | ||
| TCR-250C | 250 | 1 | 9.0 | 0.8 | 17.4 | 0.9 | 5.8 | 305 | 4x12 | 9.5 |
| TCR-250DPE | 250 | 1 | 8.1 | 0.7 | 16.5 | 0.8 | 8.4 | 305 | 4x12 | 9.5 |
