Robin Plus Engine Pump RP Series

Robin Plus Engine Pump RP Series

by Robin Plus
₱23,000.00
Size

Robin Plus Engine Pump RP Series

Specification

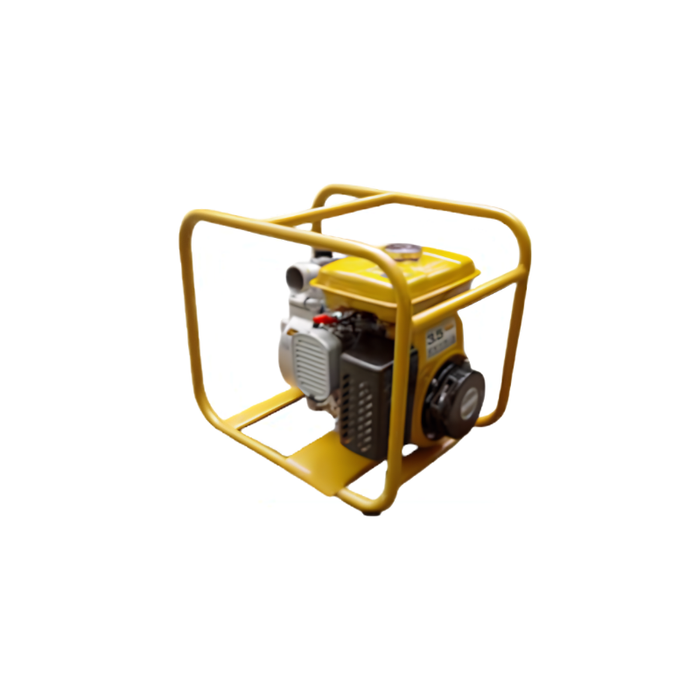

RP-203

Specifications:

  • Suction x Delivery Diameter (in.) :2x2
  • Maximum Delivery Volume : 600L/min.
  • Total Head (m) : 26
  • Suction Head (m): 8
  • Engine : EY15-3D
  • Power (HP) : 3.5
  • Fuel Tank Capacity (L) : 2.8
  • Fuel: Gasoline
  • Starting System: Recoil Start

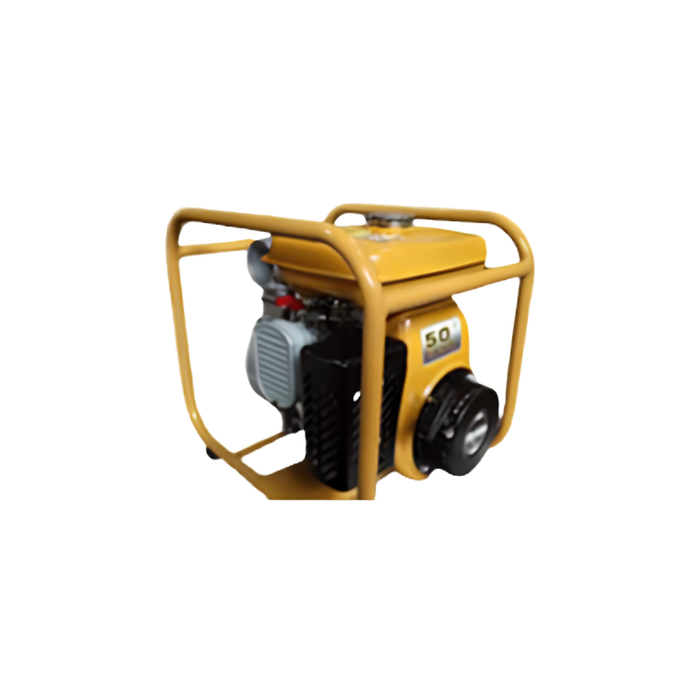

RP-205

Specifications:

  • Suction x Delivery Diameter (in.) :2x2
  • Maximum Delivery Volume : 600L/min.
  • Total Head (m) : 26
  • Suction Head (m): 8
  • Engine : EY20-3D
  • Power (HP) : 5
  • Fuel Tank Capacity (L) : 3.8
  • Fuel: Gasoline
  • Starting System: Recoil Start

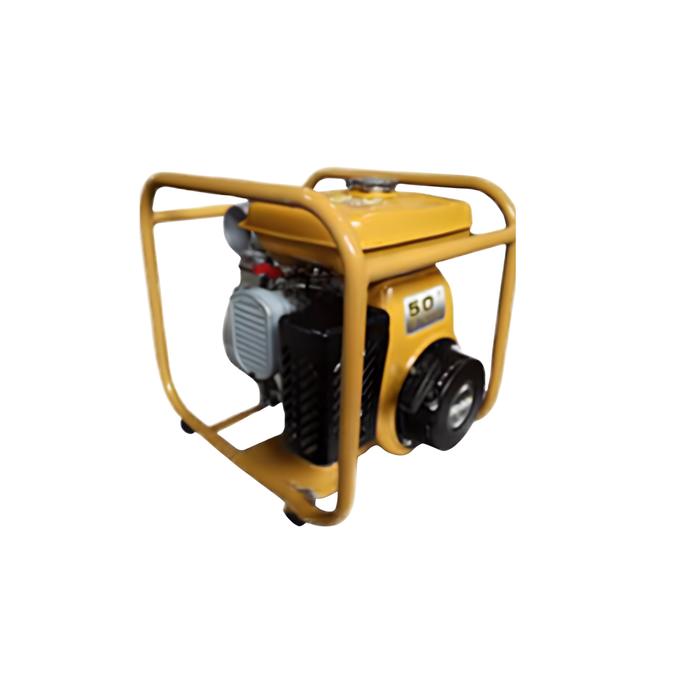

RP-305

Specifications:

  • Suction x Delivery Diameter (in.) : 3x3
  • Maximum Delivery Volume : 1000L/min.
  • Total Head (m) : 32
  • Suction Head (m): 8
  • Engine : EY20-3D
  • Power (HP) : 5
  • Fuel Tank Capacity (L) : 3.8
  • Fuel: Gasoline
  • Starting System: Recoil Start

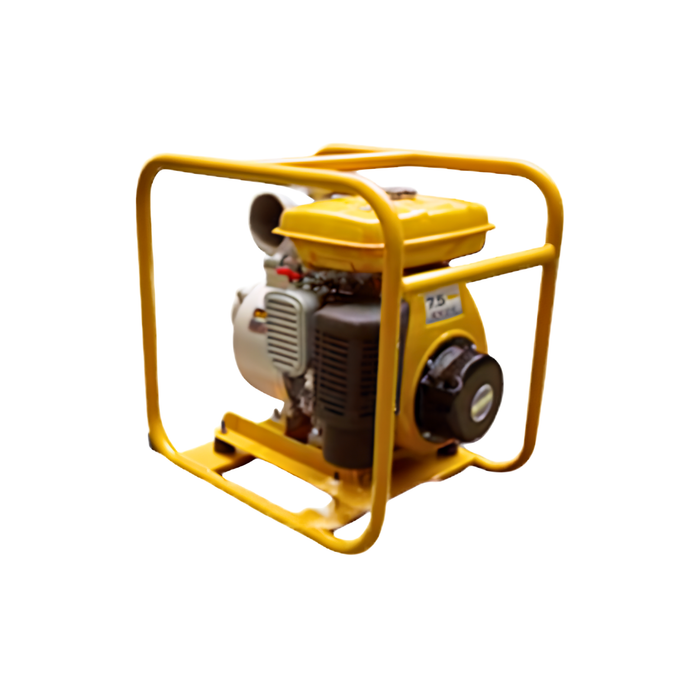

RP-407

Specifications:

  • Suction x Delivery Diameter (in.) : 4 x 4
  • Maximum Delivery Volume : 1800L/min.
  • Total Head (m) : 28
  • Suction Head (m): 8
  • Engine : EY28D
  • Power (HP) : 7.5
  • Fuel Tank Capacity (L) : 5.5
  • Fuel: Gasoline
  • Starting System: Recoil Start



RP-205SWP Saltwater Engine Pump

Specifications:

  • Size(in.) : 2 x 2
  • Maximum Delivery Volume : 580L/min.
  • Total Head (m) : 30
  • Suction Head (m): 7
  • Engine : EY20-3D
  • Power (HP) : 5.0

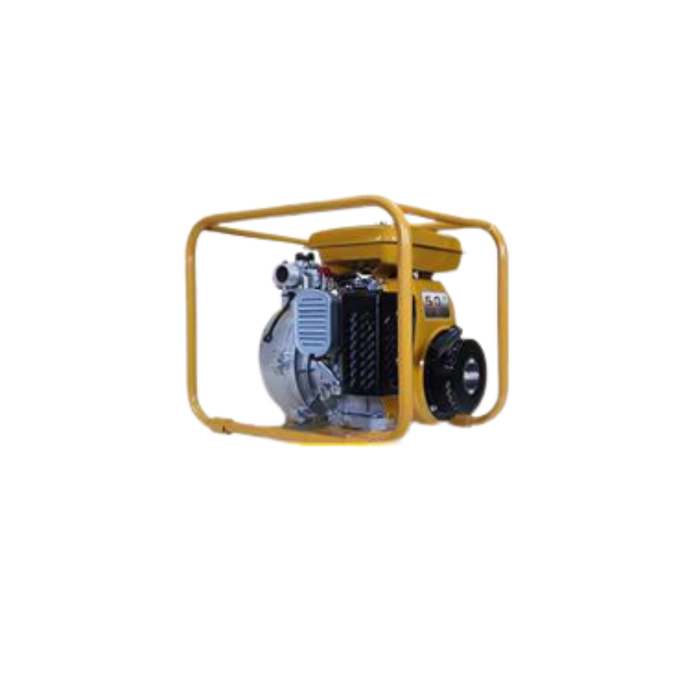

RP-205HP High Pressure Engine Pump

Specifications:

  • Size(in.) : 2 x 1-1/2"
  • Maximum Delivery Volume : 500L/min.
  • Total Head (m) : 65
  • Suction Head (m): 6
  • Engine : EY20-3D
  • Power (HP) : 5.0
Model RP-203 RP-205 RP-305 RP-407
Type Self-priming Centrifugal Pump Self-priming Centrifugal Pump Self-priming Centrifugal Pump Self-priming Centrifugal Pump
Max HP 3.5HP 5.0HP 5.0HP 7.5HP
Suction x Delivery Diameter 50.8 x 50.8 mm
(2x2 in)		 50.8 x 50.8 mm
(2x2 in)		 76.2 x 76.2 mm
(3x3 in)		 101.6 x 101.6 mm
(4x4 in)
Total Head 26 m 26 m 32 m 28 m
Maximum Delivery Volume 600 L/min 600 L/min 1000 L/min 1800 L/min
Suction Head 8 m 8 m 8 m 8 m
Axle Seal Material (Mechanical Seal) Ceramic-Carbon Ceramic-Carbon Ceramic-Carbon Ceramic-Carbon
Engine Model EY15-3D EY20-3D EY20-3D EY28D
Engine Type Robin Air-Cooled 4-Stroke Gasoline Engine Robin Air-Cooled 4-Stroke Gasoline Engine Robin Air-Cooled 4-Stroke Gasoline Engine Robin Air-Cooled 4-Stroke Gasoline Engine
Fuel Automobile Gasoline Automobile Gasoline Automobile Gasoline Automobile Gasoline
Fuel Tank Capacity 2.8 L 3.8 L 3.8 L 5.5 L
Starting System Recoil Starter Recoil Starter Recoil Starter Recoil Starter
Dimensions (L x W x H) 21 x 16 x 19 in 21 x 16 x 19 in 21 x 16 x 19 in 25 x 18 x 24 in
Net Weight 22.8 kg 24.6 kg 27.4 kg 44.1 kg
Standard Accessories Engine Tool Kit (1 set), Strainer (1 pc), Hose Coupling (2 pcs), Hose Band (3 pcs)
