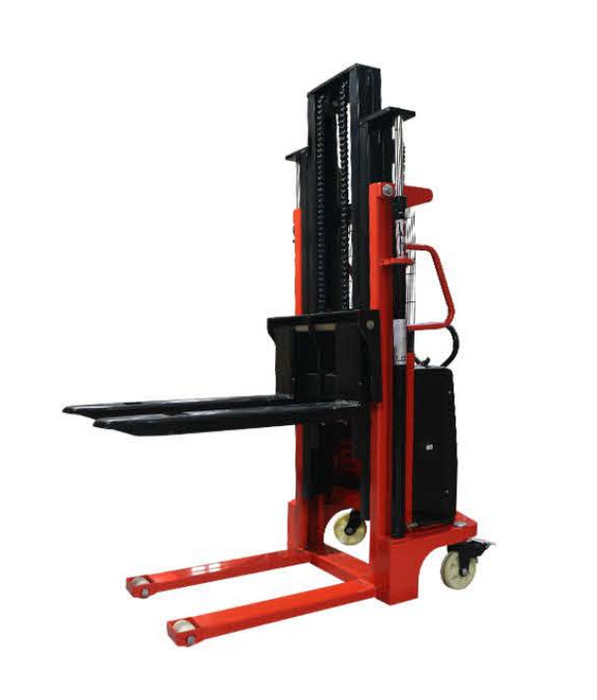

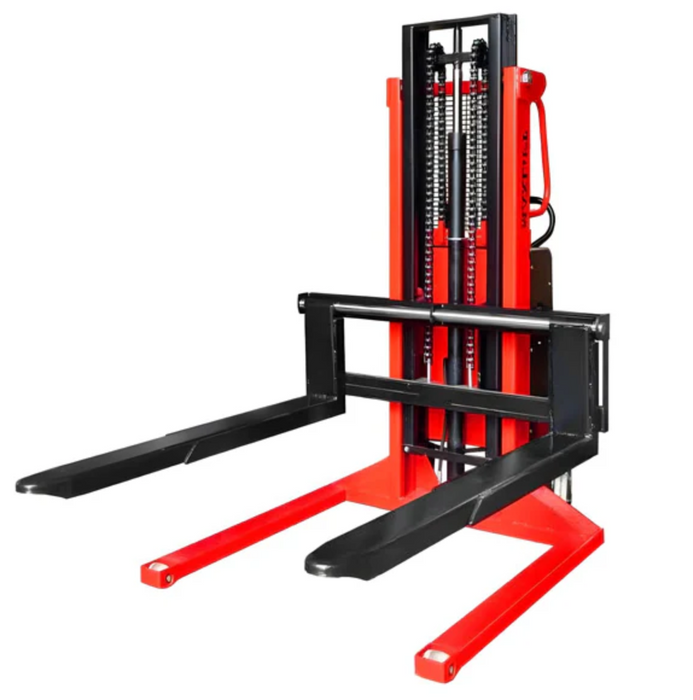

MaxLift Semi-Electric Rechargeable Pallet Stacker
Specification
| Model | LES-1500 | LES-2000 (Wide Leg) |
|---|---|---|
| Load Capacity | 1,500 kg | 2,000 kg |
| Max Lifting Height | 3,500 mm | 2,000 mm |
| Min Height | 85 mm | 85 mm |
| Fork Length | 1,000 mm | 1,600 mm |
| Fork Width | 680 mm | 1,300 mm |
| Ground Clearance | 25 mm | 25 mm |
| Max Lifting Speed (Unload) | 110 mm/s | 110 mm/s |
| Max Lifting Speed (Load) | 80 mm/s | 80 mm/s |
| Max Lowering Speed (Load) | ≤ 280 mm/s | ≤ 280 mm/s |
| Min Turning Radius | 1,430 mm | 1,430 mm |
| Self Weight | 483 kg | 403 kg |
| Rear Wheel Size | Ø 80 × 93 mm | Ø 80 × 93 mm |
| Front Wheel Size | Ø 180 × 50 mm | Ø 180 × 50 mm |
| Overall Size (L×W×H) | 2,000 × 800 × 1,760 mm | 2,285 × 1,370 × 1,570 mm |
