Dayuan Submersible Sewage Pump with Cutter
For usage of industry, agriculture, mine, building construction, environmental protection, Fit for carrying slurry, mortar ,daily sanitary wastewater and sewage containing flocks, paper, mud and sand and other solid particles also fit for dredging.
Features:
Operating limits
- Trans medium'sPH:4-10
- Fluid temperature limit: <40°C
- Max ambient temperature: <40°C
- Operating depth: 5m
Structural Characteristics
- Insulation Class: B
- Protection Class: IP68
Material
- Pump body:Stainless Steel
- Impeller: Cast Iron
- Motor shaft: Stainless steel
- Mechanical seal: Ceramic-Graphite
- Suction strainer: Cast Iron
- Motor 100% Copper Winding

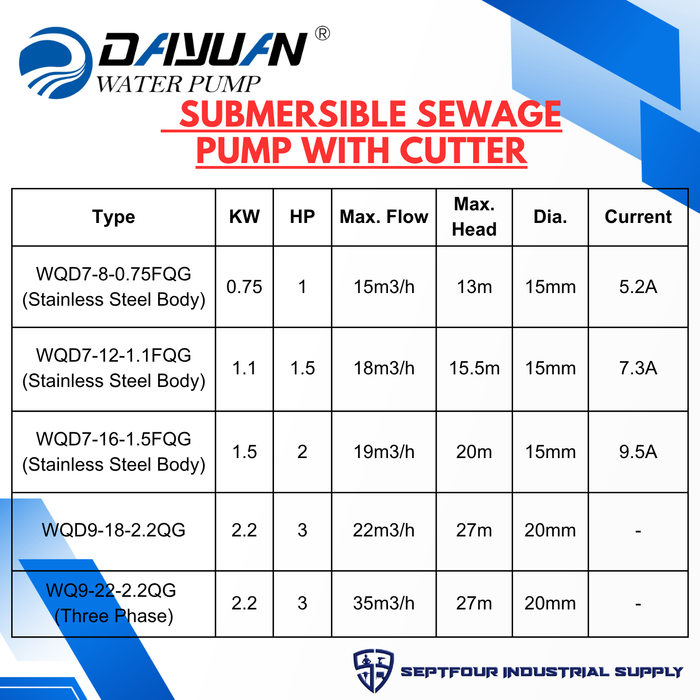

| Type | KW | HP | Voltage / Frequency | Max. Flow | Max. Head | Max. Solid Dia. | Current |
|---|---|---|---|---|---|---|---|
|
WQD7-8-0.75FQG (Stainless Steel Body) |
0.75 |
1 |
220V |
15m3/h |
13m |
15 |
5.2A |
|
WQD7-12-1.1FQG (Stainless Steel Body) |
1.1 |
1.5 |
220V |
18m3/h |
15.5 |
15 |
7.3A |
|
WQD7-16-1.5FQG (Stainless Steel Body) |
1.5 |
2 |
220V |
19m3/h |
20m |
15 |
9.5A |
| WQD9-18-2.2QG | 2.2 | 3 | 220V | 22m3/h | 27m | 20 | - |
| WQ9-22-2.2QG (Three Phase) |
2.2 | 3 | 380V/ 60 Hz |
35m3/h | 27m | 20 | - |
