Toku Screwdriver
Feature

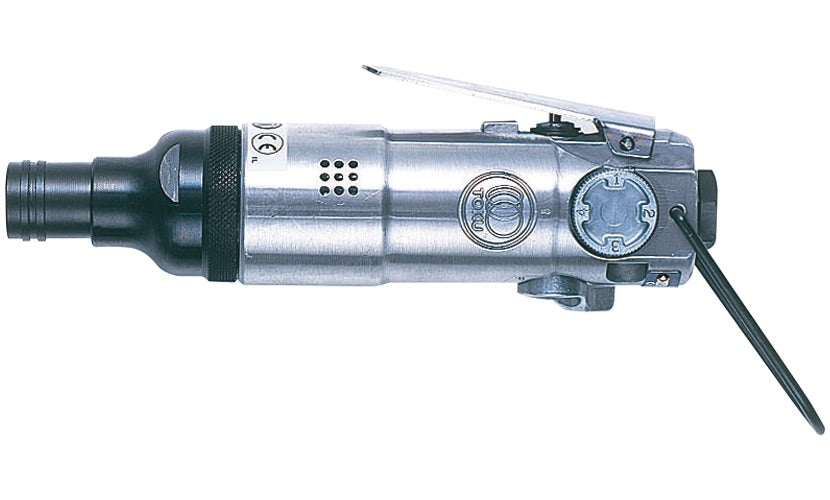

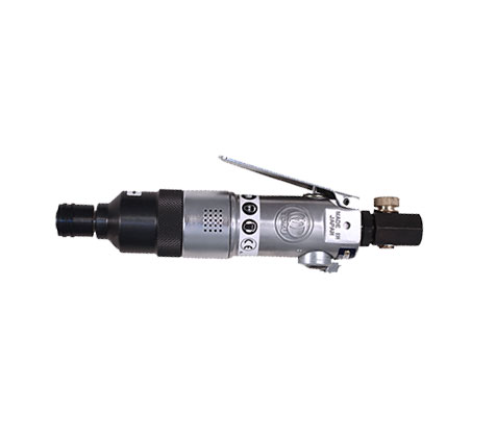

MID-50 and MID-60
- Ideal for motor vehicle and light assembly work.

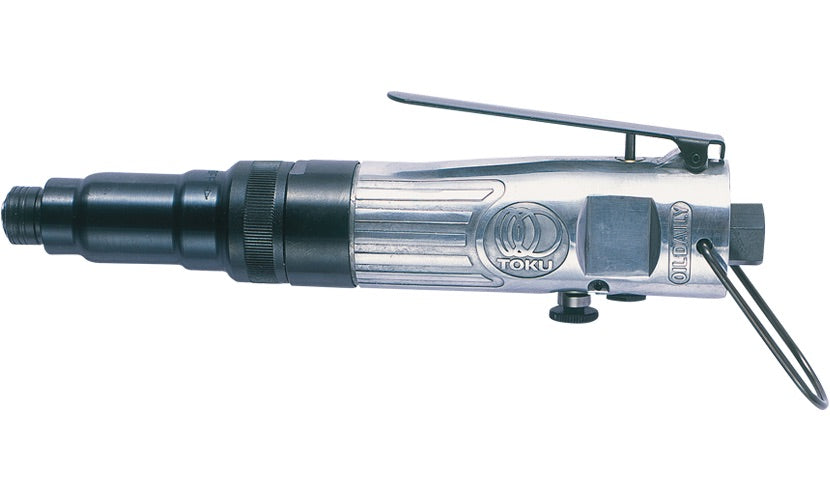

MV-6216B (Straight Body Screwdriver)
- Ideal for appliance, electronics and other light assembly industries.

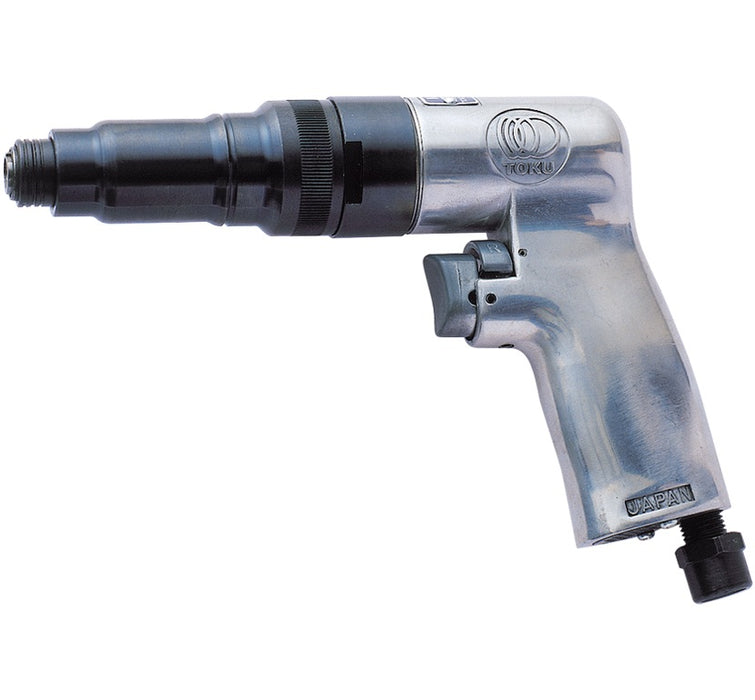

MV-6226B (Piston Grip)
- Ideal for furniture, wood working, motor vehicle and other assembly operations.
Specification
| Model | Drive | Bolt Size | Torque Range | Net Weight | Overall Length | Free Speed | Air Consumption | Air Inlet | Hose Size |
|---|---|---|---|---|---|---|---|---|---|
| MID-50 | hex 1/4" | 6 mm | - | 0.55 kg | 162 mm | 10800 rpm | 0.48 m³/min | 1/4 PT | 3/8 inch |
| MID-60 | hex 1/4" | 6 mm | - | 0.8 kg | 181 mm | 10800 rpm | 0.48 m³/min | 1/4 PT | 3/8 inch |
| MV-6216B | hex 1/4" | 6 mm | 0.4-0.9 kgm | 1.2 kg | 250 mm | 1800 rpm | 0.42 m³/min | 1/4 PT | 1/4 inch |
| MV-6226B | hex 1/4" | 6 mm | 0.5-1.2 kgm | 1.3 kg | 205 mm | 1800 rpm | 0.60 m³/min | 1/4 PT | 1/4 inch |
Note
- Working pressure: 0.6MPa.
