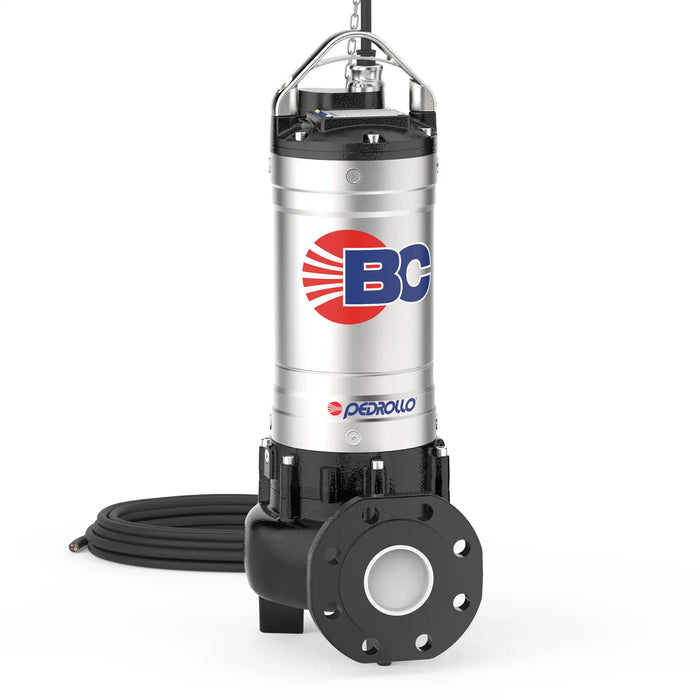

Pedrollo Submersible "Double Channel" Sewage Pumps - BC 35-50 -Made In Italy
by Pedrollo
₱121,790.00
Pedrollo Submersible "Double Channel" Sewage Pumps - BC 35-50
The BC series is constructed from thick stainless steel and cast iron, offering exceptional robustness, abrasion resistance, and durability. Equipped with TWO-CHANNEL impellers, the pumps are designed to drain sewage, sludgemixed water, and activated and putrid sludge. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.
Feature:
| Flow rate | up to 2300 l/min (138 m³/h) |
| Head up | up to 31 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – up to Ø 35 mm for BC/35 – up to Ø 50 mm for BC/50 |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | 500 mm |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
Specification:
|
Model |
Power P2 |
Performance |
Ports |
Passage of solids |
||
|---|---|---|---|---|---|---|
|
Three Phase |
KW |
HP |
Q (L/min) |
H (m) |
DN1 |
Mm |
|
BC 40/35 |
3 |
4 |
300 - 1500 |
18.5 - 5.5 |
2 1/2” |
35 |
|
BC 55/35 |
4 |
5.5 |
300 - 1700 |
22.5 - 7.5 |
35 |
|
|
BC 75/35 |
5.5 |
7.5 |
300 - 1900 |
27.5 - 10 |
35 |
|
|
BC 40/50 |
3 |
4 |
300 - 1800 |
16 - 4.5 |
3” |
50 |
|
BC 55/50 |
4 |
5.5 |
300 - 2100 |
20 - 6 |
50 |
|
|
BC 75/50 |
5.5 |
7.5 |
300 - 2300 |
24.5 - 7.5 |
50 |
|
