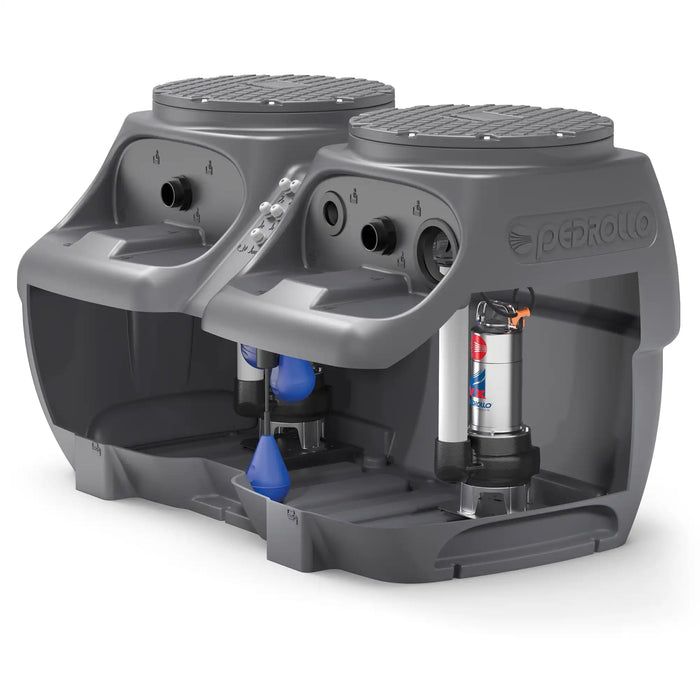

Pedrollo Lift and Collection Stations - SAR 550 - Made In Italy

Pedrollo Lift and Collection Stations - SAR 550 - Made In Italy

by Pedrollo
₱206,140.00
Model

Pedrollo Lift and Collection Stations - SAR 550

The SAR 550 lift and collection stations are designed to handle clear water, rainwater, or dirty water from civil and industrial drains, where the sewer network is too far away or not accessible by gravity.

Feature:

Flow rate up to 750 l/min (for single pump)
Head up up to 26 m
Liquid temperature up to +40°C
Tank volume 550 liters
Collection pipe connection DN 110
Discharge pipe connection – 1 1/2"
– 1 1/4" (for TIG e TR 0.9-1.1-1.3)
– 2" (for VX /50)
Power cable 10 m



Specification:

Clear Waste Water- Rainwater


Model
Power P2
Tank capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 550 - TOP 4
0.75
1
550
320
12.5

SAR 550 - TOP 5
0.92
1.25
550
360
15

SAR 550 - RXm 4
0.75
1
550
270
15

SAR 550 - RXm 5
1.1
1.5
550
320
19.5

SAR 550 - Dm 10
0.75
1
550
300
15.5

SAR 550 - Dm 20
0.75
1
550
250
19

SAR 550 - Dm 30
1.1
1.5
550
275
26



Dirty or Sewage Waste Water


Model
Power P2
Tank capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 550 - RXm 4/40
0.75
1
550
340
11

SAR 550 - RXm 5/40
1.1
1.5
550
380
12.5

SAR 550 - VXm 10/35-ST
0.75
1
550
400
10.5

SAR 550 - VXm 10/50-ST
0.75
1
550
550
9.5

SAR 550 - BCm 10/50-ST
0.75
1
550
600
11

SAR 550 - VXm 10/35
0.75
1
550
400
10

SAR 550 - VXm 15/35
1.1
1.5
550
500
13.5

SAR 550 - VXm 10/50
0.75
1
550
550
8.5

SAR 550 - VXm 15/50
1.1
1.5
550
650
11

SAR 550 - BCm 10/50
0.75
1
550
600
11

SAR 550 - BCm 15/50
1.1
1.5
550
750
14

Three Phase





SAR 550 - VX 15/50
1.1
1.5
550
650
11

SAR 550 - BC
1.1
1.5
550
750
14



SAR 550 with grinder Pumps (Tritus)


Model
Power P2
Tank capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 550 - TRm 0.75
0.75
1
550
125
15

SAR 550 - TRm 0.9*
0.9
1.25
550
170
15

SAR 550 - TRm 1.1*
1.1
1.5
550
140
21.5

SAR 550 - TRm 1.3*
1.3
1.75
550
220
22.5

SAR 550 - TRm 1.5
1.5
2
550
270
25

Three Phase





SAR 550 - TR 0.75 *
0.75
1
550
125
15

SAR 550 - TR 0.9 *
0.9
1.25
550
170
15

SAR 550 - TR 1.1 *
1.1
1.5
550
140
21.5

SAR 550 - TR 1.3 *
1.3
1.75
550
220
22.5

SAR 550 - TR 1.5
1.5
2
550
270
25

SAR 550 - TR 2.2
2.2
3
550
280
30



Components:

  • 550-litre polyethylene tank with cover plate
  •  Control panel
  •  Three float switches for: 1) the alternate start-up of one of the two pumps, 2) maximum level for starting-up the second pump, 3) minimum level for switching the pumps off
  •  Power cable: 10 metres standard equipment
  •  Lifting stations with inlet pipe Ø 110 mm, discharge pipe G 1¼" or G 1½" or G 2" and vent pipe DN 50 or DN 75
  •  Footing connection and guide tubes for lowering the pump (only for VX-ST and BC-ST)

Optiomnal available on request (Seperate price)

  • Alarm Kit
    • includes control box self-powered siren, float switch
  • 300mm extension Kit
    •  Extension kit for the Installation of the polythylene SAR tank at greater depths
