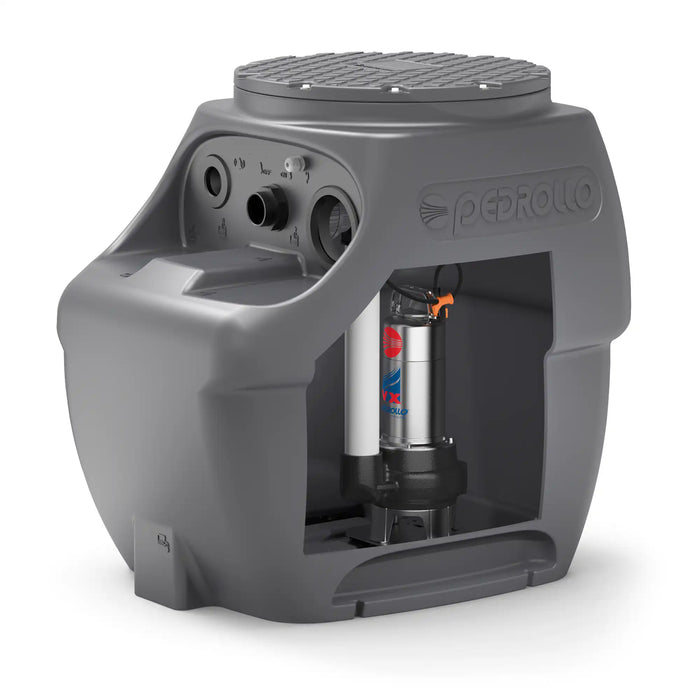

Pedrollo Lift and Collection Stations -SAR 250 - Made In Italy

Pedrollo Lift and Collection Stations -SAR 250 - Made In Italy

by Pedrollo
₱78,690.00
Model

Pedrollo Lift and Collection Stations -SAR 250

SAR 250 lift and collection stations are designed to handle clear water, rainwater, and wastewater from household and civil drains like washing machines, dishwashers, sinks, and toilets, especially in situations where connection to the main sewer system is im- practical or impossible due to distance or gravity constraints.

Feature:

Flow rate up to 650 l/min
Head up up to 26 m
Liquid temperature – up to +40°C
– up to +50°C (per RX)
Tank volume 250 liters
Collection pipe connection DN 110
Discharge pipe connection – 1 1/2"
– 1 1/4" (for TOP, RX)
– 2" (for VX /50)
Power cable 10 m



Specification:

Clear Waste Water-Rainwater


Model
Power P2
Tank Capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 250 - TOP 3
0.55
0.75
250
260
10

SAR 250 - TOP 4
0.75
1
250
320
12.5

SAR 250 - TOP 5
0.92
1.25
250
360
15

SAR 250 - RXm 3
0.55
0.75
250
220
11.5

SAR 250 - RXm 4
0.75
1
250
270
15

SAR 250 - RXm 5
1.1
1.5
250
320
19.5

SAR 250 - Dm 10
0.75
1
250
300
15.5

SAR 250 - Dm 20
0.75
1
250
250
19

SAR 250 - Dm 30
1.1
1.5
250
275
26



Dirty or Sewage Waste Water


Model
Power P2
Tank Capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 250 - TOP 2-VORTEX
0.37
0.50
250
155
7.1

SAR 250 - TOP 3-VORTEX
0.55
0.75
250
170
8.2

SAR 250 - RXm 3/20
0.55
0.75
250
240
9.5

SAR 250 - RXm 4/40
0.75
1
250
340
11

SAR 250 - RXm 5/40
1.1
1.5
250
380
12.5

SAR 250 - VXm 10/35-ST
0.75
1
250
400
10.5

SAR 250 - VXm 10/50-ST
0.75
1
250
550
9.5

SAR 250 - BCm 10/50-ST
0.75
1
250
600
11

SAR 250 - VXm 10/35
0.75
1
250
400
10

SAR 250 - VXm 15/35
1.1
1.5
250
500
13.5

SAR 250 - VXm 10/50
0.75
1
250
550
8.5

SAR 250 - VXm 15/50
1.1
1.5
250
650
11

SAR 250 - BCm 10/50
0.75
1
250
600
11

SAR 250 - BCm 15/50
1.1
1.5
250
750
14

SAR 250 with Grinder Pumps (Tritus)


Model
Power P2
Tank Capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 250 - TRm 0.75
0.75
1
250
125
15

SAR 250 - TRm 0.9*
0.9
1.25
250
170
15

SAR 250 - TRm 1.1*
1.1
1.5
250
140
21.5

SAR 250 - TRm 1.3*
1.3
1.75
250
220
22.5

SAR 250 - TRm 1.5
1.5
2
250
270
25

Three Phase





SAR 250 - TR 0.75 *
0.75
1
250
125
15

SAR 250 - TR 0.9 *
0.9
1.25
250
170
15

SAR 250 - TR 1.1 *
1.1
1.5
250
140
21.5

SAR 250 - TR 1.3 *
1.3
1.75
250
220
22.5

SAR 250 - TR 1.5
1.5
2
250
270
25

SAR 250 - TR 2.2
2.2
3
250
280
30



Components

  • 250-litre polyethylene tank with cover plate
  • Pump with float switch
  •  Power cable: 10 metres standard equipment with Schuko plug
  •  Control panel (only for SAR 250 - TR)
  •  Lifting stations with inlet pipe Ø 110 mm, discharge pipe G 1¼" or G 1½" or G 2" and vent pipe DN 50 or DN 75
  •  Footing connection and guide tubes for lowering the pump (only for VX-ST and BC-ST)

Optiomnal available on request (Seperate price)

  • Alarm Kit
    • includes control box self-powered siren, float switch
  • 300mm extension Kit
    •  Extension kit for the Installation of the polythylene SAR tank at greater depths
