Pedrollo Lift and Collection Stations - SAR 100 - Made In Italy

Pedrollo Lift and Collection Stations - SAR 100 - Made In Italy

by Pedrollo
₱50,430.00
Model

Pedrollo Lift and Collection Stations -SAR 100

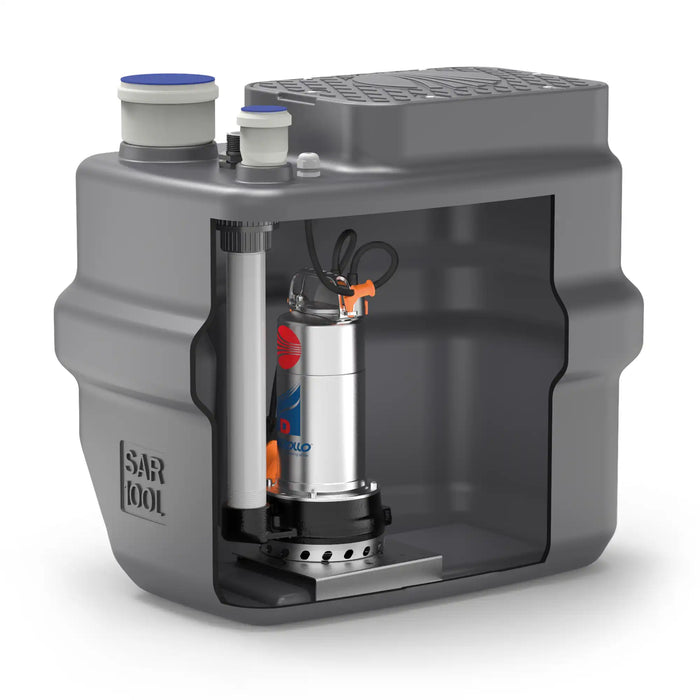

SAR 100 lift and collection stations are designed to handle clear water, rainwater, and wastewater from household drains like washing machines, dishwashers, sinks, and toilets, especially in situations where connection to the main sewer system is impractical or impossible due to distance or gravity constraints.

Feature:

Flow rate up to 400 l/min
Head up up to 19 m
Liquid temperature – up to +40°C
– up to +50°C (per RX)
Tank volume 100 litres
Collection pipe connection DN 110
Discharge pipe connection – 1 1/4" (for TOP, RX)
– 1 1/2"
Power cable 10 m



Components:

  • 100-litre polyethylene tank with cover plate
  • Pump with float switch
  • Power cable: 10 metres standard equipment with Schuko plug
  •  Control panel (only for SAR 100 - TR)
  • Lifting stations with inlet pipe Ø 110 mm, discharge pipe G 1¼" or G 1½" or G 2" and vent pipe Ø 50 mm

Specification:

Clear Waste Water - Rainwater


Model
Power P2
Tank Capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 100 - TOP 2
0.37
0.50
100
220
8

SAR 100 - TOP 3
0.55
0.75
100
260
10

SAR 100 - TOP 4
0.75
1
100
320
12.5

SAR 100 - TOP MULTI 1
0.37
0.50
100
75
25

SAR 100 - TOP MULTI 2
0.55
0.75
100
80
38.5

SAR 100 - TOP MULTI 3
0.55
0.75
100
120
30

SAR 100 - RXm 2
0.37
0.50
100
190
9.5

SAR 100 - RXm 3
0.55
0.75
100
220
11.5

SAR 100 - Dm 10
0.75
1
100
300
15.5

SAR 100 - Dm 20
0.75
1
100
250
19

SAR 100 - Dm 30
1.1
1.5
100
275
26



Dirty or Sewage Waste Water


Model
Power P2
Tank Capacity
Maximum Flow Rate
Maximum Head

Single Phase
KW
HP
Litres
L/min
M

SAR 100 - TOP 2-VORTEX
0.37
0.50
100
155
7.1

SAR 100 - TOP 3-VORTEX
0.55
0.75
100
170
8.2

SAR 100 - RXm 2/20
0.37
0.50
100
190
7.5

SAR 100 - RXm 3/20
0.55
0.75
100
240
9.5

SAR 100 - ZXm 1A/40
0.60
0.70
100
400
10.5

SAR 100 - ZXm 2/30
0.55
0.75
100
320
12.5

SAR 100 - ZXm 2/40
0.55
0.75
100
400
11

SAR 100 - VXm 8/35
0.55
0.75
100
350
8

SAR 100 - VXm 10/35
0.75
1
100
400
10

SAR 100 - VXm 8/50
0.55
0.75
100
450
6

SAR 100 - VXm 10/50
0.75
1
100
550
8.5

SAR 100 - BCm 10/50
0.75
1
100
600
11



SAR-100 With Grinder Pump (Tritus)


Single Phase





SAR 100 - TRm 0.75
0.75
1
100
125
15

SAR 100 - TRm 1.1
1.1
1.5
100
140
21.5
