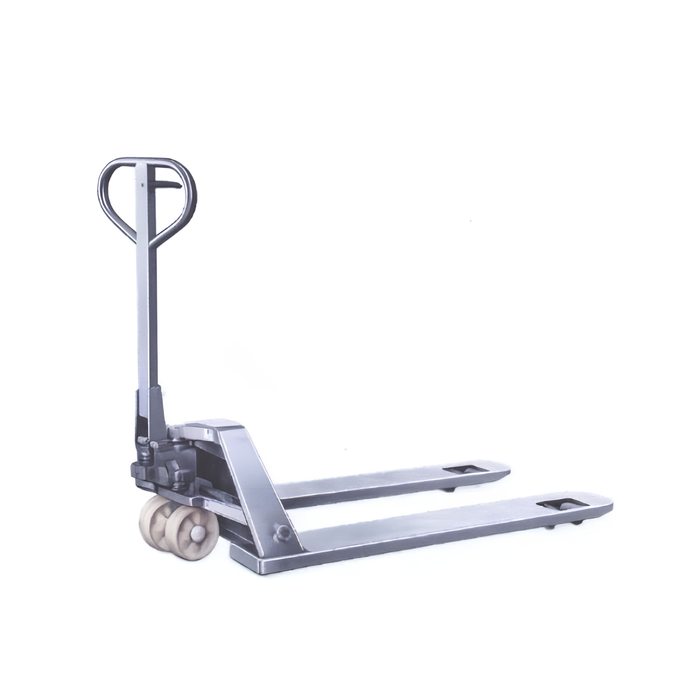

Meiho (Galvanized) Hand Pallet Truck - CBY DX Series
Feature
- All the exposed parts of the whole truck is galvanized, including hydraulic pump, fork frame, handle and so on.
- Meant for special applications in cold and wet environments, can resist the effects of temperature, condensation and washing.
- Nylon steering wheel and fork rollers comes as standard option for damp or harsh environment applications.
- With pressure relief valve and overload valve to help prevent pump damages when loads exceed weight limits.
- The one-piece pump design simplifies repairs, assuring reliability and a long service life.
- Ideal transport aid for application in damp or harsh environments such as meat or fish process sing plants, dairies, pharmaceutical and chemical aid.
Specification
- Material : Galvanized
- Standard Size : 1220x685x85mm
- Narrow Size : 1150x550x85mm
- Wheel : Nylon
| Type | Standard | Narrow | ||
|---|---|---|---|---|
| Model | CBY DX 2.5 w/ Nylon wheel | CBY DX 3.0 w/ Nylon wheel | CBY DX 2.5 w/ Nylon wheel | CBY DX 3.0 w/ Nylon wheel |
| Lifting capacity | 2.5 TON | 3 TON | 2.5 TON | 3.0 TON |
| Min fork height (mm) | 85 | 85 | 85 | 85 |
| Max fork height (mm) | 195 | 195 | 195 | 195 |
| Total width (mm) | 685 | 685 | 550 | 550 |
| Fork Length (mm) | 1220 | 1220 | 1150 | 1150 |
| Self weight (kg) | 65-80 | 65-80 | 550* | 550* |
