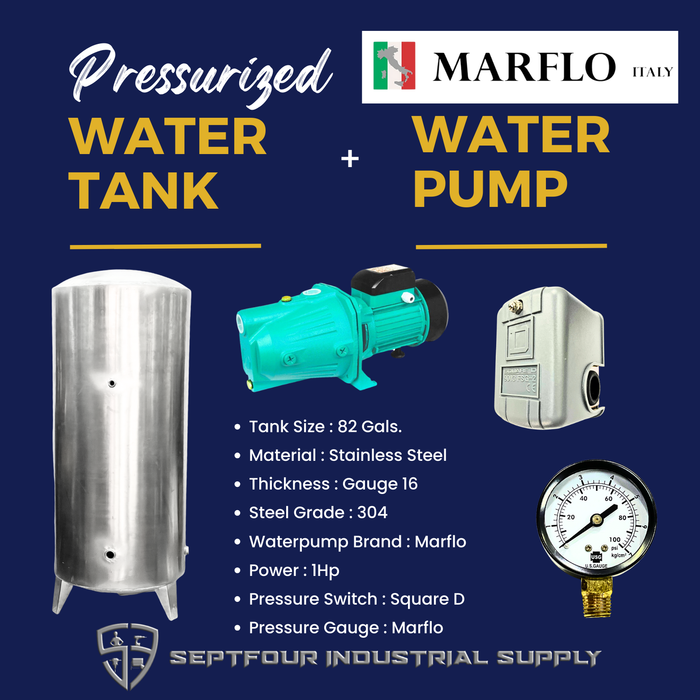

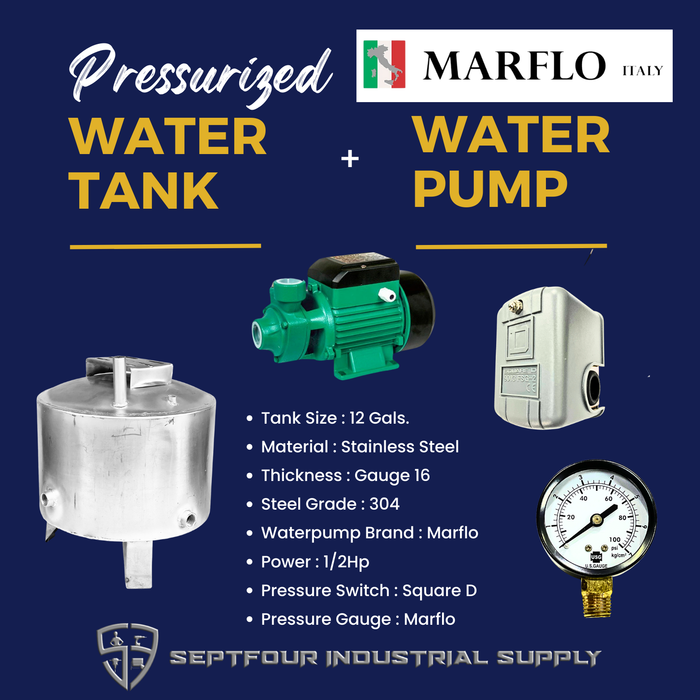

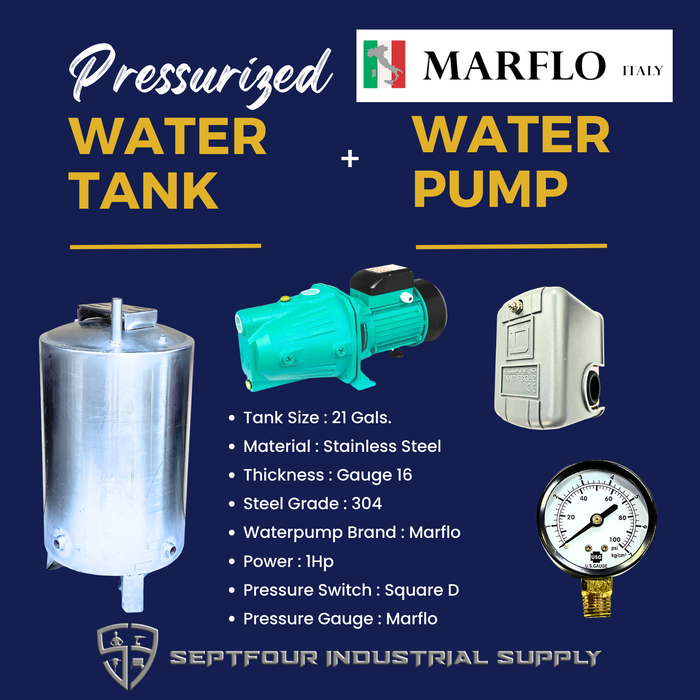

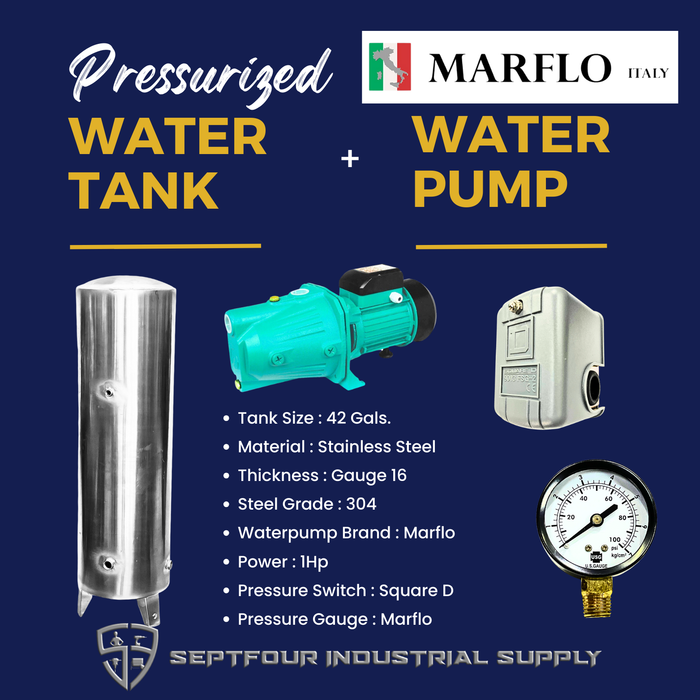

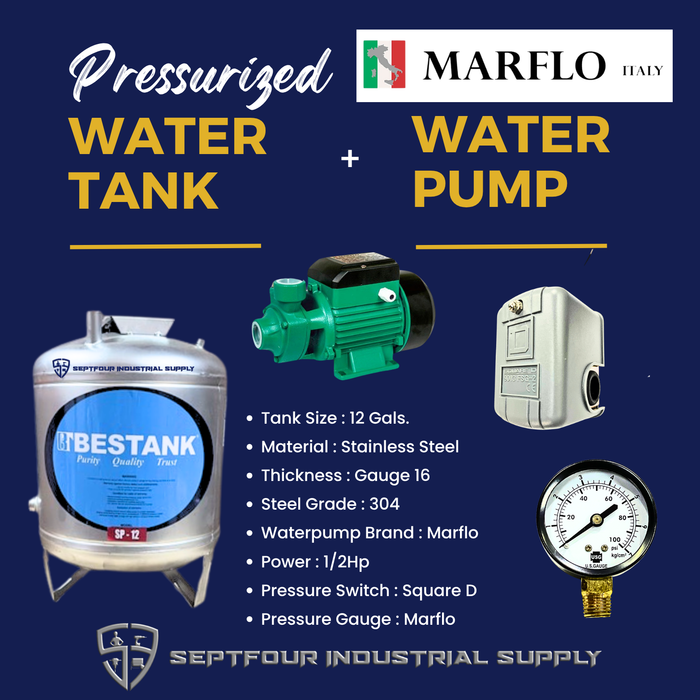

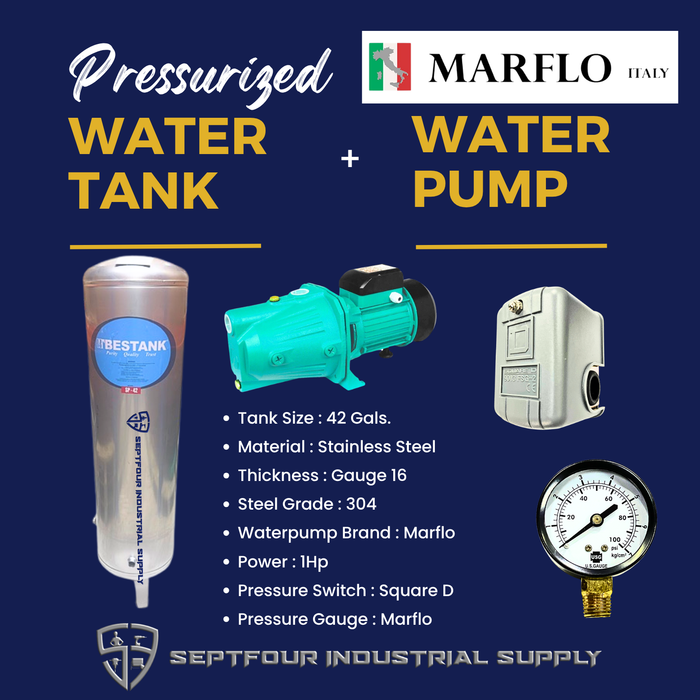

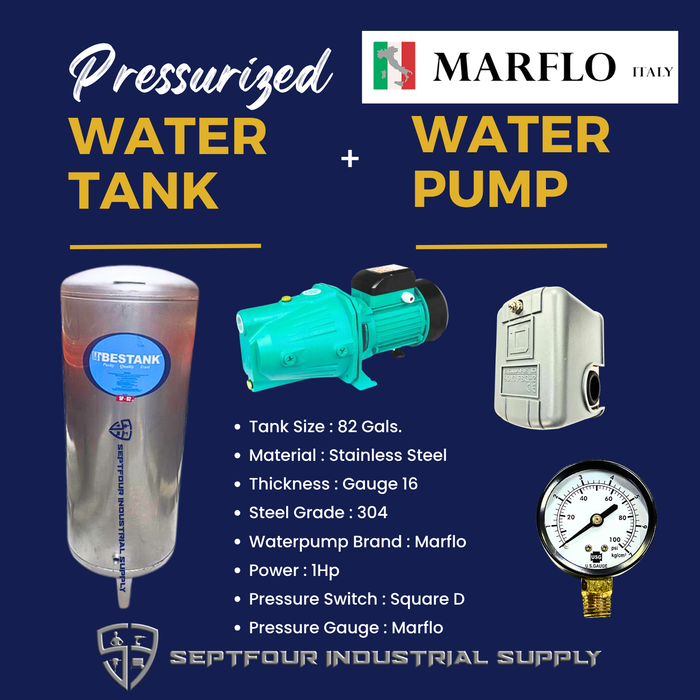

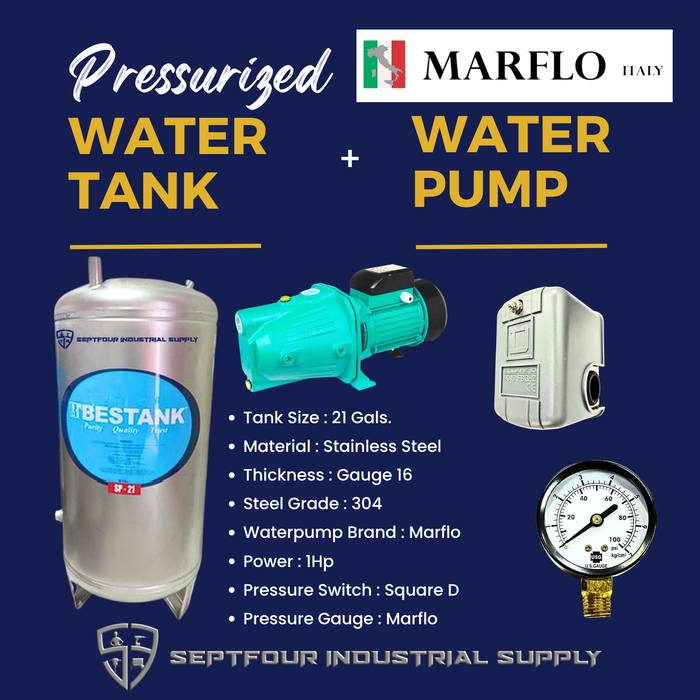

Marflo 1/2Hp or 1Hp JET Waterpump with Stainless Steel Pressurized Tank
Switch and Gauge (set)
Specifications :
Waterpump
Brand : Marflo
- Power : 1/2hp (QB60)
- H. Max : 30m
- Suction Max : 9m
- Q. Max : 36lpm
- Voltage : 220v
or
- Power : 1hp (MF-750B)
- H. Max : 30m
- Suction Max : 9m
- Q. Max : 36lpm
- Voltage : 220v
Pressure Tank :
-
Tank Size : 21Gals./42Gals./82Gals.
- Brand of Tank : Extreme or Bestank
-
Material : Stainless Steel
-
Thickness : Gauge 16
-
Steel Grade : 304
-
Pressure Range : 20 to 40Psi
Pressure Switch
-
-
Brand : Square D
-
Class : 9013
-
Type : FSG-2
-
Pressure Range : 20 to 40psi
-
Base : Metal
- Pressure Gauge
-
Brand : Ametek
-
Pressure Range : 0 to 100Psi
-
Wetted Material : Brass
-
Case Material : Steel Painted Black
-
Size : 2" or 50mm
-
Connection Size : 1/4" NPT
-
Mounting Location : Center Back Mount
-
Application : House, Townhouse, Building, Warehouse, etc.
- Note :
-
This is sold as set.
-
It includes (Waterpump, Pressure Tank, Switch and Gauge & some GI fittings attached to it as show shown above). NO fittings included for 42Gals. and 82Gals.
-
Drain Plug at the bottom of the Pressure Tank NOT included.
-
You will received this item assembled already.
-
For other configuration like 1Hp waterpump with 42Gals./82 Gals. Pressure Tank can be done but has to be bought one by one and NOT as set/assembled.
6. Message us for more inquiries.
