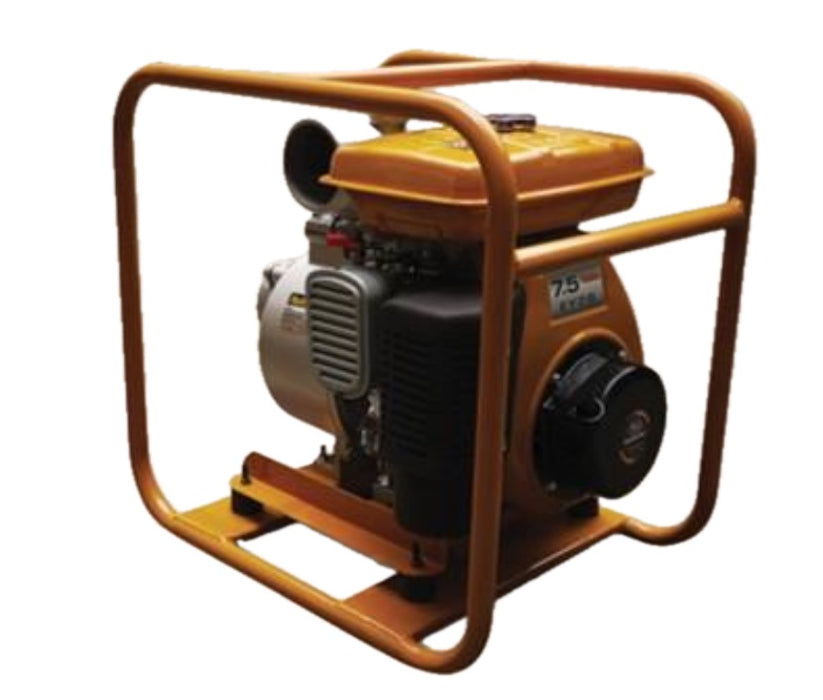

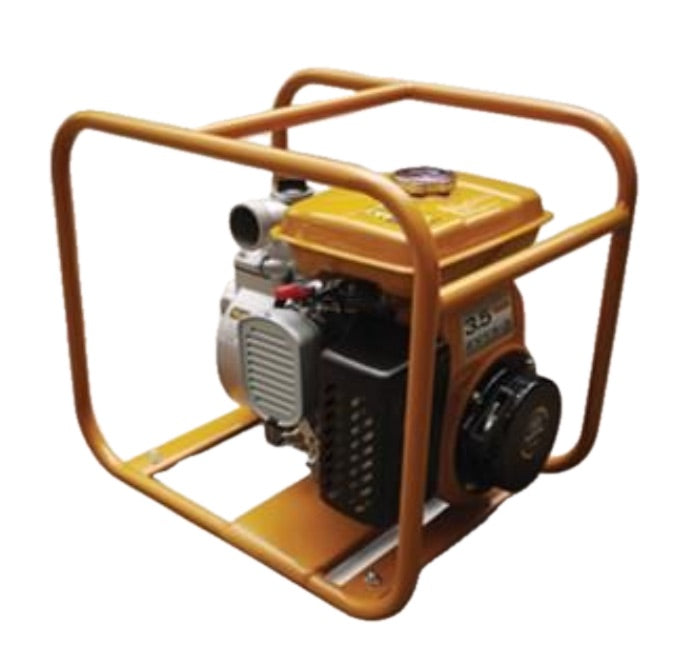

Robin Plus Engine Pump RP Series
Specification
| Model | RP-203 | RP-205 | RP-305 | RP-407 |
|---|---|---|---|---|
| Type | Self-priming Centrifugal Pump | Self-priming Centrifugal Pump | Self-priming Centrifugal Pump | Self-priming Centrifugal Pump |
| Max HP | 3.5HP | 5.0HP | 5.0HP | 7.5HP |
| Suction x Delivery Diameter | 50.8 x 50.8 mm (2x2 in) |
50.8 x 50.8 mm (2x2 in) |
76.2 x 76.2 mm (3x3 in) |
101.6 x 101.6 mm (4x4 in) |
| Total Head | 26 m | 26 m | 32 m | 28 m |
| Maximum Delivery Volume | 600 L/min | 600 L/min | 1000 L/min | 1800 L/min |
| Suction Head | 8 m | 8 m | 8 m | 8 m |
| Axle Seal Material (Mechanical Seal) | Ceramic-Carbon | Ceramic-Carbon | Ceramic-Carbon | Ceramic-Carbon |
| Engine Model | EY15-3D | EY20-3D | EY20-3D | EY28D |
| Engine Type | Robin Air-Cooled 4-Stroke Gasoline Engine | Robin Air-Cooled 4-Stroke Gasoline Engine | Robin Air-Cooled 4-Stroke Gasoline Engine | Robin Air-Cooled 4-Stroke Gasoline Engine |
| Fuel | Automobile Gasoline | Automobile Gasoline | Automobile Gasoline | Automobile Gasoline |
| Fuel Tank Capacity | 2.8 L | 3.8 L | 3.8 L | 5.5 L |
| Starting System | Recoil Starter | Recoil Starter | Recoil Starter | Recoil Starter |
| Dimensions (L x W x H) | 21 x 16 x 19 in | 21 x 16 x 19 in | 21 x 16 x 19 in | 25 x 18 x 24 in |
| Net Weight | 22.8 kg | 24.6 kg | 27.4 kg | 44.1 kg |
| Standard Accessories | Engine Tool Kit (1 set), Strainer (1 pc), Hose Coupling (2 pcs), Hose Band (3 pcs) | |||
