Dayuan JET Waterpump with Stainless Steel Pressurized Tank
Switch and Gauge (set)
Specifications :
Waterpump
1/2HP
- Brand : Dayuan
-
Rated power: 0.5HP /0.37KW
-
MaxFlow: 30l/m
-
Max Head: 32m
- Max. Suction: 8m
-
Outlet Diameter: 1 inch
- Motor 100% Copper Winding
1Hp
-
Brand : Dayuan
-
Power : 1Hp
-
Max Head : 50m
-
Max. Suction : 8m
-
Q. Max. 40L/m
-
Voltage : 220v
-
RPM : 3400
-
100% Copper Winding
-
Copper Impeller
Pressure Tank
-

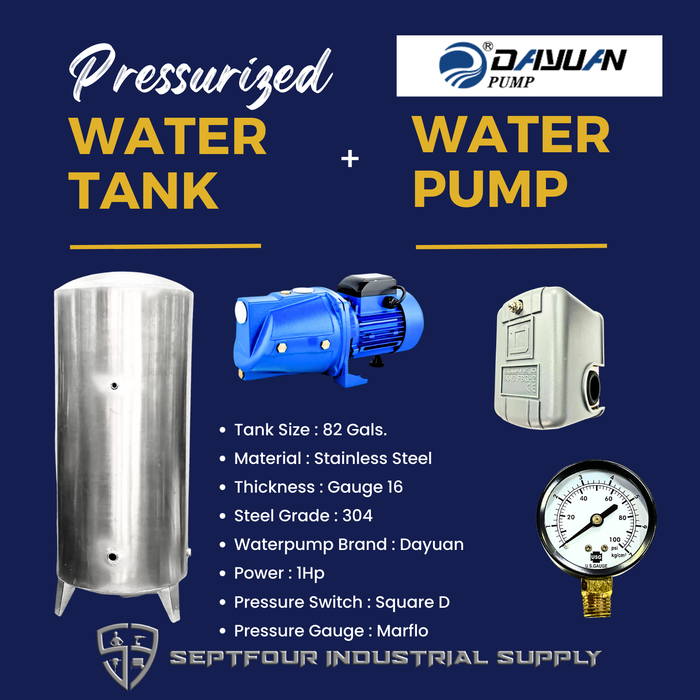

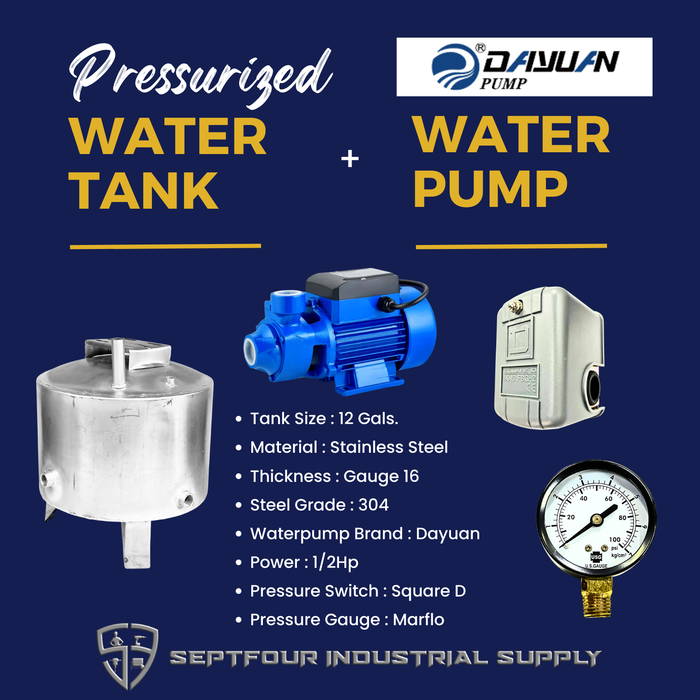

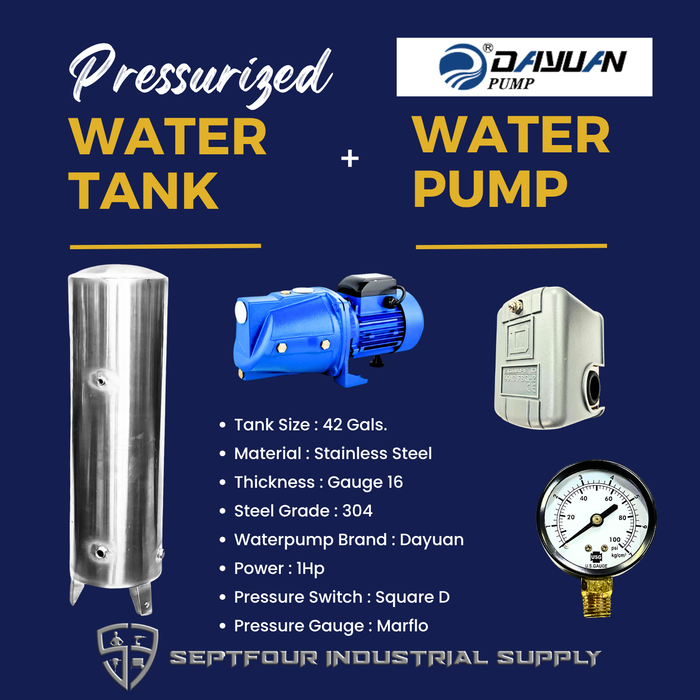

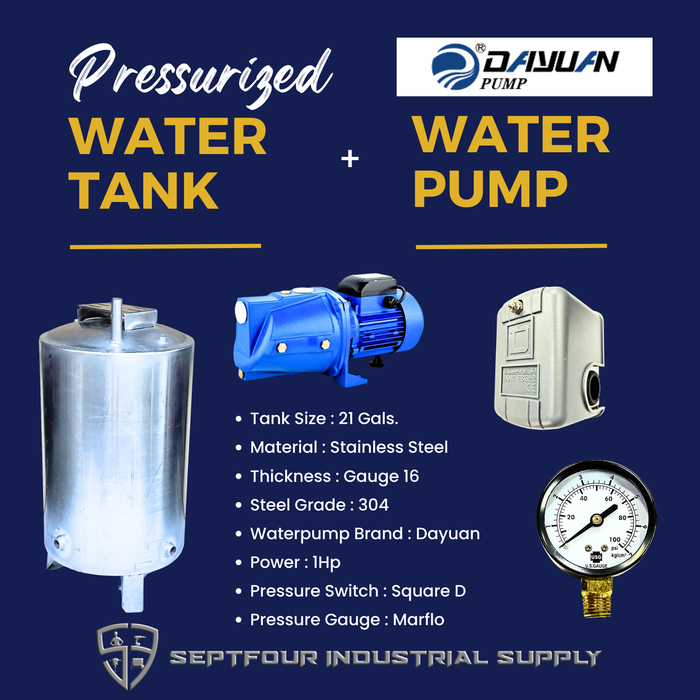

Tank Size : 12Gals. /21Gals./42Gals./82Gals.
-
Material : Stainless Steel
-
Thickness : Gauge 16
-
Steel Grade : 304
-
Pressure Range : 20 to 40Psi
Pressure Switch
-
Brand : Square D
-
Class : 9013
-
Type : FSG-2
-
Pressure Range : 20 to 40psi
-
Base : Metal
Pressure Gauge
-
Brand : Ametek
-
Pressure Range : 0 to 100Psi
-
Wetted Material : Brass
-
Case Material : Steel Painted Black
-
Size : 2" or 50mm
-
Connection Size : 1/4" NPT
-
Mounting Location : Center Back Mount
-
Application : House, Townhouse, Building, Warehouse, etc.
Note :
-
This is sold as set.
-
It includes (Waterpump, Pressure Tank, Switch and Gauge & some GI fittings attached to it as show shown above). NO fittings included for 42Gals. and 82Gals.
-
Drain Plug at the bottom of the Pressure Tank NOT included.
-
You will received this item assembled already.
-
For other configuration like 1Hp waterpump with 42Gals./82 Gals. Pressure Tank can be done but has to be bought one by one and NOT as set/assembled.
6. Message us for more inquiries.
