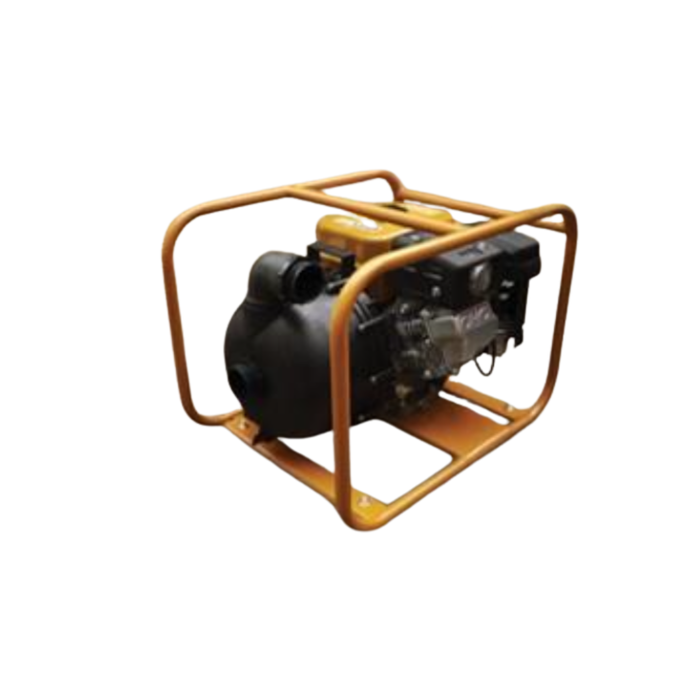

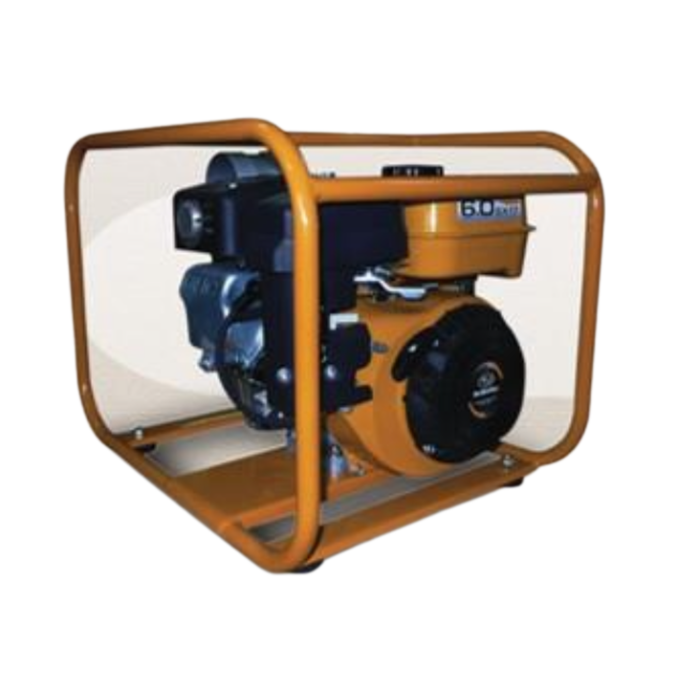

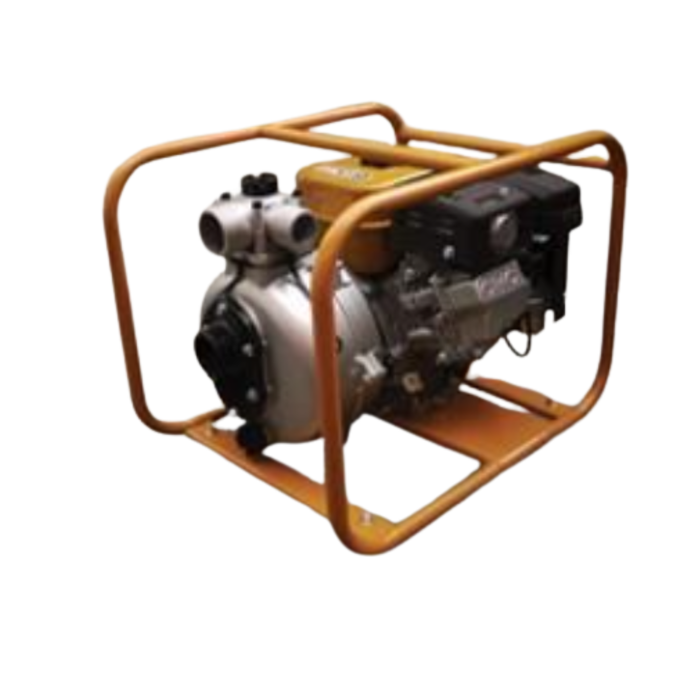

Robin Plus Engine Pump RPX Series
Description :
Powered by Robin EX17 6.0HP OHC Gasoline Engine
Guarantees high performance; a characteristic descended from SUBARU DNA.
EXtremely Reliable &Durable OHC System
Its heavy-duty Chain Driven OHC (Overhead Cam) whit its oval type case-hardened steel links that enhance performance and resist stretching result ni extended maintenance-free operation.
EXtremely Low Fuel Consumption
Optimized engine performance and fuel efficiency are realized by high speed &homogenous
combustion, intake &exhaust valves located at optimum angle, and straight intake port with minimal air flow resistance.
EXtremely Easy Start - No Kick-back
Alows instant starting even at minus 10 degrees celsius, without any perceptible kick-back.
EXtremely Silent
2B quieter &softer ni tone than other engines ni hte same class.
EXtremely Environment-friendly
XE Engines comply with the emission standards and regulations of the California Ari Resources Board (CARB) and the Environmental Protection Agency (EPA) ni the USA.
EXtremely Easy Maintenance
Simplifies maintenance &lowers repair costs due to fewer parts for service:
Specification
| Model | RPX-206 | RPX-306 | RPX-206HP | RPX-206SWP |
|---|---|---|---|---|
| Type | Self-priming Centrifugal Pump | Self-priming Centrifugal Pump | High Pressure Pump | Salt Water Pump |
| Max HP | 6.0HP | 6.0HP | 6.0HP | 6.0HP |
| Suction x Delivery Diameter | 50.8 x 50.8 mm (2 x 2 in) |
76.2 x 76.2 mm (3 x 3 in) | 50.8 x 38.1 mm (2 x 1.5 in) |
50.8 x 50.8 mm (2 x 2 in) |
| Total Head | 26 m | 32 m | 65 m | 30 m |
| Maximum Delivery Volume | 600 L/min | 1000 L/min | 500 L/min | 580 L/min |
| Suction Head | 8 m | 8 m | 6 m | 7 m |
| Axle Seal Material (Mechanical Seal) | Ceramic Carbon | Ceramic Carbon | Ceramic Carbon | Ceramic Carbon |
| Engine Model | EX-17D | EX-17D | EX-17D | EX-17D |
| Engine Type | Robin Air-Cooled 4-Stroke Gasoline Engine | Robin Air-Cooled 4-Stroke Gasoline Engine | Robin Air-Cooled 4-Stroke Gasoline Engine | Robin Air-Cooled 4-Stroke Gasoline Engine |
| Fuel | Automobile Gasoline | Automobile Gasoline | Automobile Gasoline | Automobile Gasoline |
| Fuel Tank Capacity | 3.6 L | 3.6 L | 3.6 L | 3.6 L |
| Starting System | Recoil Starter | Recoil Starter | Recoil Starter | Recoil Starter |
| Dimensions (L x W x H) | 22 x 17 x 17 in | 22 x 17 x 17 in | 22 x 17 x 17 in | 22 x 17 x 17 in |
| Net Weight | 24.4 kg | 27.2 kg | 32 kg | 26 kg |
| Standard Accessories | Engine Tool Kit (1 set), Strainer (1 pc), Hose Coupling (2 pcs), Hose Band (3 pcs for RPX206, RPX306 & RPX206SWP; 2 pcs for RPX206HP) | |||
