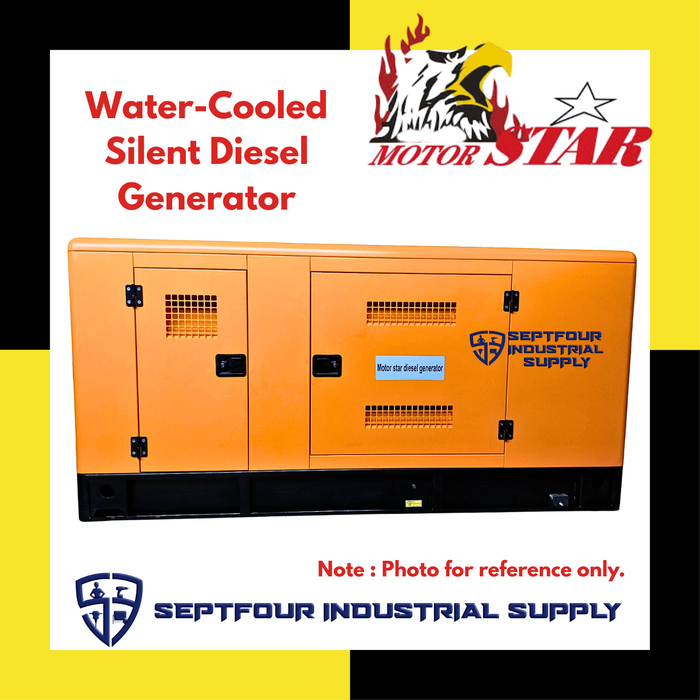

Motorstar Generating Set Powered By Cummins Engine

Motorstar Generating Set Powered By Cummins Engine

by Motorstar
₱550,000.00
Model
Phase

Motorstar Generating Set Powered By Cummins Engine

Specification

Single Phase - 60 Hz

Model C-22S C-24S C-34S C-75S
Pime Output 22kw / 22kva 24kw / 24kva 34kw / 34kva 75kw / 75kva
Cummins Diesel Engine Model 4B3.9-G2 4B3.9-G2 4BT3.9-G2 6BT5.9-G2
Stamford Alternator Model SLG184E SLG184E SLG184H SLG274C
Engine Character Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke
Prime Output 22kw 24kw 34kw 75kw
Stanby Output 22kw 24kw 34kw 75kva
Connection Type Single Phase Single Phase Single Phase Single Phase
Revolution Per Minute 1800 r.p.m 1800 r.p.m 1800 r.p.m 1800 r.p.m
Voltage 220v 220v 220v 220v
Hz 60hz 60hz 60hz 60hz
No. Of Cylinder 4 4 4 6
Power Efficency 85.8% 90% 90% 90.4%
Lub Oil Capacity 11 liters 11 liters 11 liters 16.4 liters
Genset water Coolant Capacity 18 18 18 22
Alternator Character 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless
Winding 100% Copper 100% Copper 100% Copper 100% Copper
Fuel Tank 45 liters 45 liters 45 liters 70 liters
Dimension 2.3x1.1x1.21 2.3x1.1x1.21 2.3x1.1x1.21 2.8x1.1x1.47
Weight 1280 1280 1300 2300



Three Phase- 60Hz

Model C-40S C-50S C-75S C-160S C-200S C-280S YN563C
Pime Output 40kw/50 kva 50kw/62.5kva 75kw/94kva 160kw/200kva 200kw/250kva 280kw/350kva 410kw/512kva/451kw/564kva
Cummins Diesel Engine Model 4BT3.9-G2 4BTA3.9-G2 6BT5.9-G2 6CTA8.3-G2 6LTAA8.9-G2 NTA855-G1B KTA19-G3
Stamford Alternator Model SLG184H SLG224D SLG274C SLG274G SLG274H SLG314D SLG354C
Engine Character Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke Water-cooled 4-Stroke
Prime Output 40kw 50kw 75kw 160kw 200kw 280kw 451kw
Stanby Output 50kva 62.5kva 94kva 200kva 250kva 350kva 564kva
Connection Type Three Phase Three Phase Three Phase Three Phase Three Phase Three Phase Three Phase
Revolution Per Minute 1800 r.p.m 1800 r.p.m 1800 r.p.m 1800 r.p.m 1800 r.p.m 1800 r.p.m 1800 r.p.m
Voltage 220v/440v 220v/440v 220v/440v 220v/440v 220v/440v 220v/440v 220v/440v
Hz 60hz 60hz 60hz 60hz 60hz 60hz 60hz
No. Of Cylinder 4 4 6 6 6 6 6
Power Efficency 90.0% 88.6% 90.4% 93.3% 92% 92% 93.0%
Lub Oil Capacity 11 liters 11 liters 16.4 liters 24 liters 27.6 liters 38.6 liters 45.4 liters
Genset water Coolant Capacity 18 18 22 24.5 28 66 120
Alternator Character 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless 4 Pole Brushless
Winding 100% Copper 100% Copper 100% Copper 100% Copper 100% Copper 100% Copper 100% Copper
Fuel Tank 45 liters 45 liters 70 liters 80 liters 95 liters 210 liters 265 liters
Dimension
(lxwxh) (m)		 2.3x1.1x1.21 2.3x1.1x1.21 2.8x1.1x1.47 3x1.2x1.8 3.3x1.3x2. 3.9 x 1.6 x 2.27 4.1 x 1.5 x 2.2
Weight 1350 1480 2300 3000 3350 4000 5400
