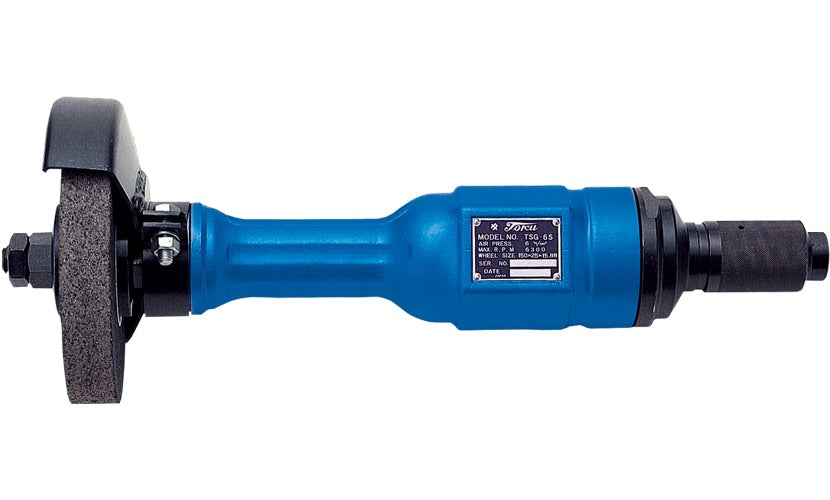

Toku Straight Grinder
Feature
- Roll type throttle start.
- Ideal for removing burs on material, smoothing welds, etc.
Specification
| MODEL | Wheel/Collet size |
Wheel Max Speed |
Free Speed |
Net Weight |
Overall Length |
Air Consumption |
Air Inlet |
Hose Size |
Horse power |
|---|---|---|---|---|---|---|---|---|---|
| mm | m/min | rpm | kg | mm | m3/min | PT | inch | HP | |
| TSG-3F | (3") 75x13x9.5 | 3000 | 12700 | 1.6 | 305 | 0.8 | 1/4 | 3/8 | 0.7 |
| TSG-5S | (5") 125x19x12.7 | 3000 | 7600 | 3.0 | 400 | 1.1 | 3/8 | 1/2 | 1.4 |
| TSG-6S |
(6") 150x25x15.9 |
3000 | 6300 | 4.2 | 430 | 1.2 | 3/8 | 1/2 | 2.1 |
Note
- Working pressure: 0.6MPa.
