Toku Impact Wrench (3/4" to 1" Square Drive / Straight)
Feature

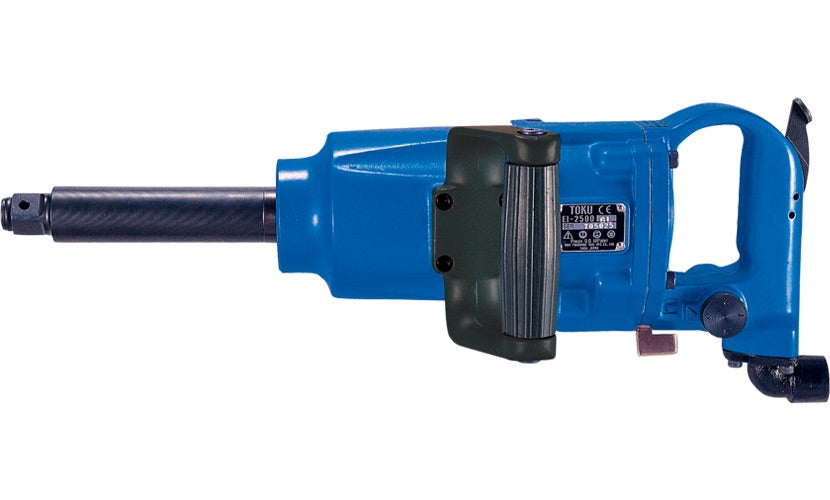

MI-2500GS/ MI-2500GL
- Short anvil shank type MI-2500GS available.
- 3/4”SQ drive is available.
- Ideal for maintenance of trucks and change of truck tires.
- 2 steps throttle for precise control.
- Elastomer side handle grip.
- 4 positions regulator.
- Inside trigger type MI-2500EL(ES) available

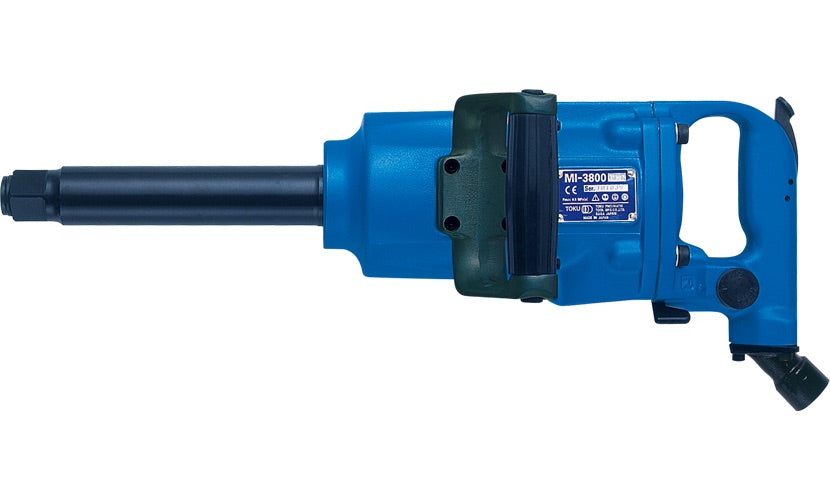

MI-3800GS / MI-3800GL
- Short anvil shank type MI-3800GS available.
- Ideal for maintenance of trucks and change of truck tires.
- 2 steps throttle for precise control.
- Elastomer side handle grip.
- 4 positions regulator.
- Inside trigger type MI-3800EL(ES) available.
Specification
| MODEL | Drive | Bolt Size |
Torque Range |
Max Torque |
Net Weight |
Overall Length |
Center Height |
Free Speed |
Air Consumption |
Air Inlet |
Hose Size |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | kgm | kgm | kg | mm | mm | rpm | Free m3/min |
Load m3/min |
PT | inch | |
| MI-2500GS | 1 | 25 | 50 - 110 | 130 | 8.2 | 341 | 50 | 5300 | 1.2 | 0.7 | 3/8 | 1/2 |
| MI-2500GL | 1 | 25 | 50 - 110 | 130 | 9.0 | 460 | 50 | 5300 | 1.2 | 0.7 | 3/8 | 1/2 |
| MI-3800GS | 1 | 38 | 50 - 150 | 200 | 9.5 | 355 | 55 | 4700 | 1.6 | 1.0 | 1/2 | 1/2 |
| MI-3800GL | 1 | 38 | 50 - 150 | 200 | 10.2 | 504 | 55 | 4700 | 1.6 | 1.0 | 1/2 | 1/2 |
