Toku Impact Wrench (3/4" to 1" Square Drive / Pistol Grip)
Feature

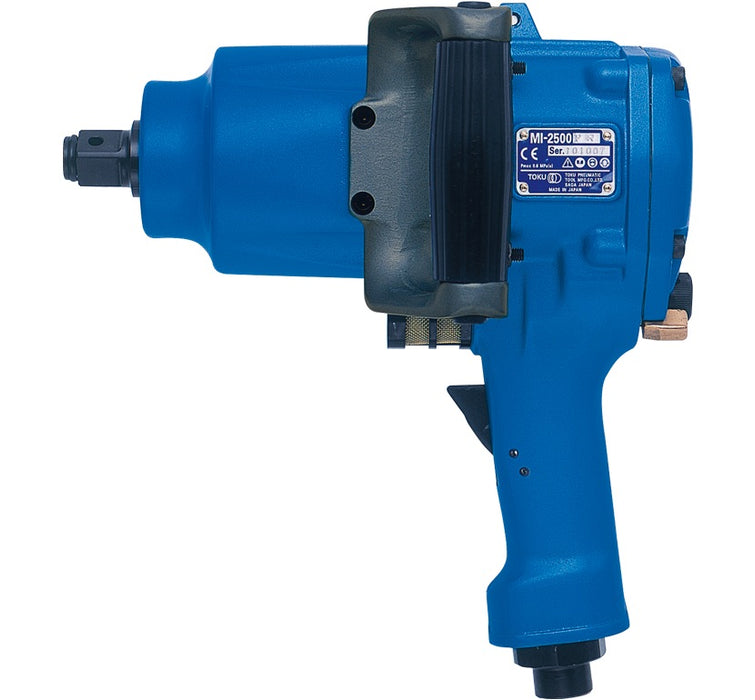

MI-2500PS(Short) and MI-2500PL (long)
- RH type anvil shank available.
- 3/4” or 1" SQ drive is available.
- Ideal for assembly and maintenance of trucks.
- Well balanced ergonomic design.
- 2 steps throttle for precise control.
- 4 positions regulator.
- 360 free rotating exhaust.

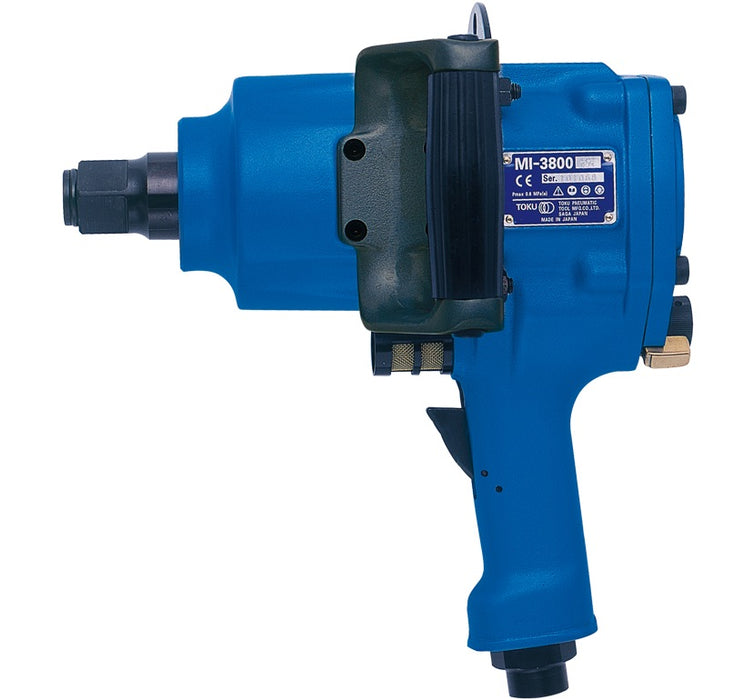

MI-3800PR(Short) and MI-3800PL (long)
- RH type anvil shank available.
- Ideal for maintenance of trucks and construction equipment.
- Well balanced ergonomic design.
- 2 steps throttle for precise control.
- 4 positions regulator.
- 360 free rotating exhaust.
- Elastomer side handle grip.

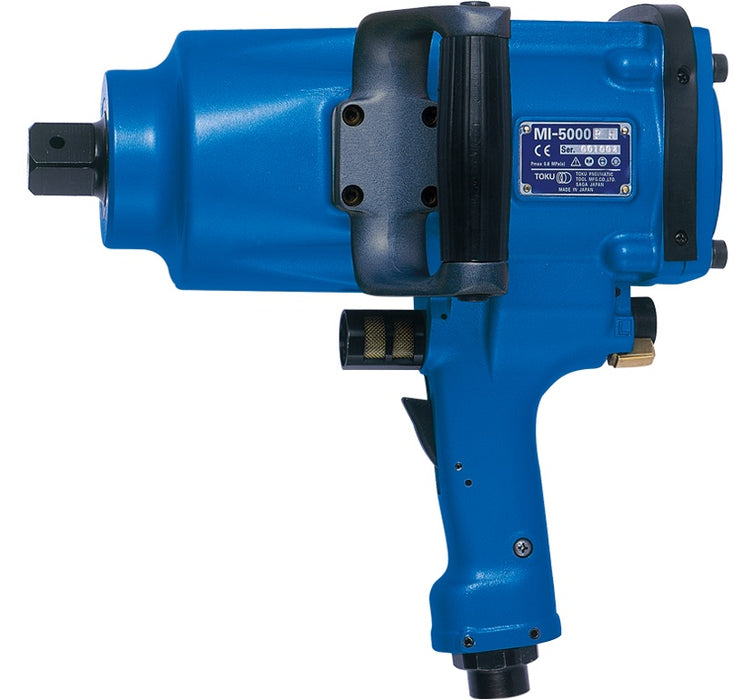

MI-5000P(Short) and MI-5000PL (long)
- RH type anvil shank available.
- Ideal for maintenance of trucks and construction equipments.
Specification
| MODEL | Drive | Bolt Size | Torque Range | Max Torque | Net Weight | Overall Length | Center Height | Free Speed | Air Consumption (Free / Load) | Air Inlet | Hose Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MI-2500P | 1 inch | 25 mm | 50-110 kgm | 130 | 8.2 kg | 265 mm | 50 | 5300 rpm | (1.2 / 0.7) m³/min | 3/8 PT | 1/2 inch |
| MI-3800P | 1 inch | 38 mm | 50-150 kgm | 200 | 9.5 kg | 276 mm | 55 | 4700 rpm | (1.6 / 1.0) m³/min | 1/2 PT | 1/2 inch |
| MI-5000P | 1 inch | 50 mm | 50-220 kgm | 270 | 13.9 kg | 310 mm | 60 | 3700 rpm | (1.9 / 1.0) m³/min | 1/2 PT | 1/2 inch |
Note
- Working pressure: 0.6MPa.
