Toku Impact Wrench (1/2" & 3/4" Square Drive / Pistol Grip)
Feature

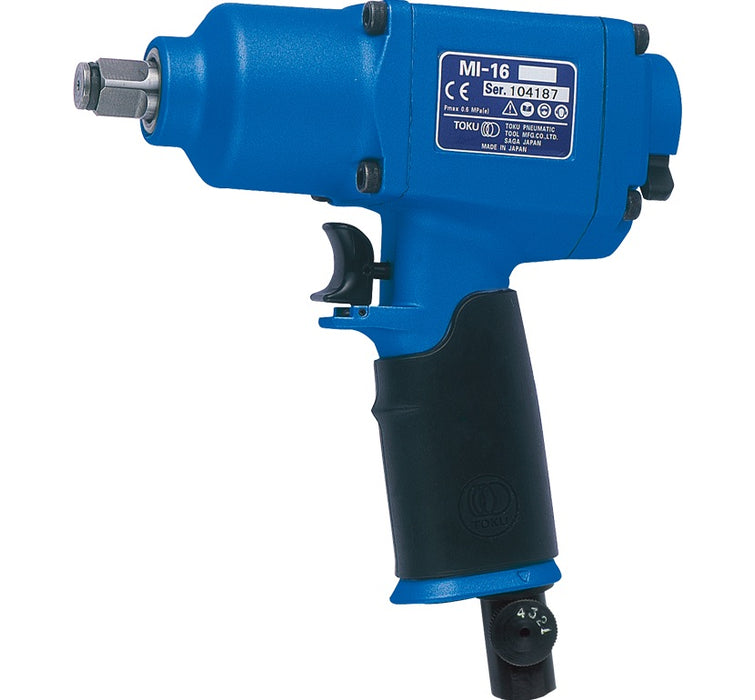

MI-16M
- Elastomer handle grip.
- Ideal for automotive repair and assembly work.

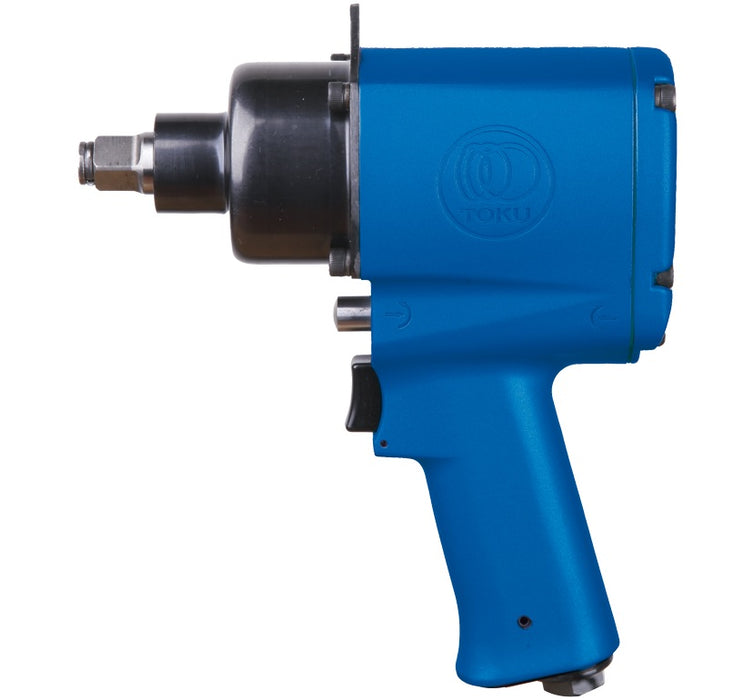

MI-17M and MI-17ML
- Ultimate power in reverse
- Ideal for automotive repair and the shops.
- Long anvil type available (+50.8mm length) as MI-17ML.
- Ergonomic handle design.
- Closed trigger.
- Oil bath clutch room.

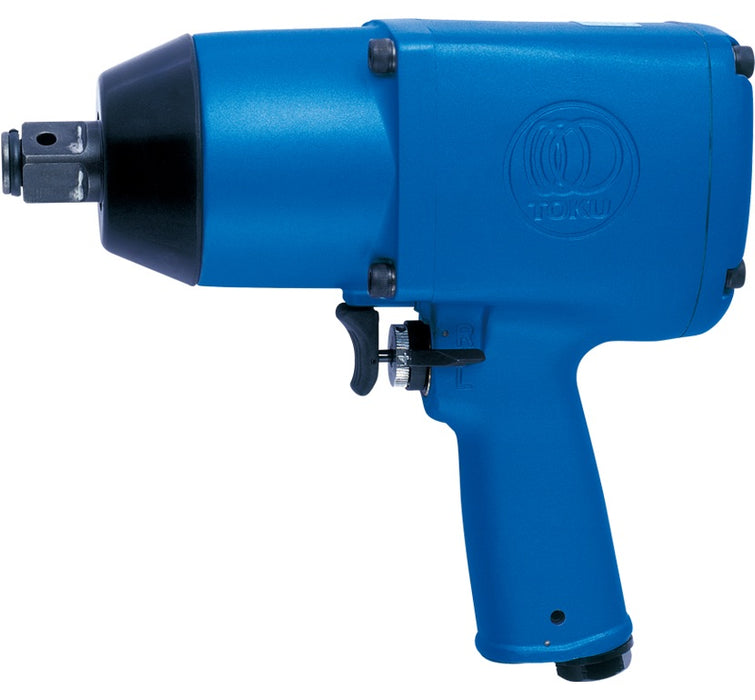

MI-20P
- 360 free rotating exhaust.
- One handed easy reverse switch.
- Ideal for assembly and maintenance of trucks.
- Long anvil type (plus120mm) also available as MI-20PL.
Specification
| MODEL | Drive | Bolt Size | Torque Range | Max Torque | Net Weight | Overall Length | Center Height | Free Speed | Air Consumption (Free / Load) | Air Inlet | Hose Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MI-16M | 1/2 inch | 16 mm | 15 - 36 kgm | 46 | 1.5 kg | 170 mm | 27.5 | 7200 rpm | (0.62 / 0.40) m³/min | 1/4 PT | 3/8 inch |
| MI-17M | 1/2 inch | 16 mm | 25-45 kgm | R55 L60 | 2.5 kg | 179 mm | 33 | 5500 rpm | (0.6 / 0.5) m³/min | 1/4 PT | 3/8 inch |
| MI-20P | 3/4 inch | 20 mm | 40-80 kgm | 100 | 3.9 kg | 309 mm | 42 | 5000 rpm | (1.1 / 0.7) m³/min | 3/8 PT | 3/8 inch |
